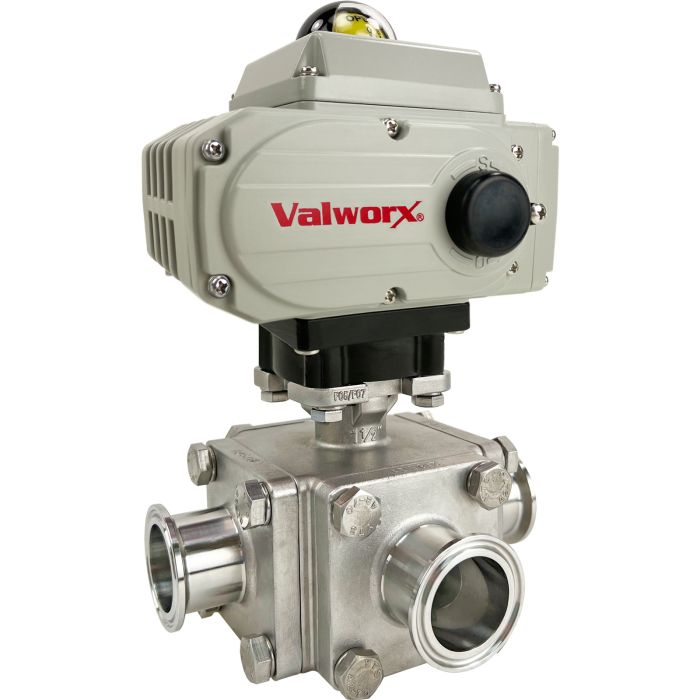

Sanitary Ball Valve, L-Port, 24 VDC, Tri-Clamp 1-1/2"

Valworx 573703 electric actuated stainless steel sanitary 3-way ball valves are typically used for food, beverage, pharmaceutical, personal care and pet care applications where 3-A sanitary construction is required, as well as for utility, process and corrosive environment applications where quick clamp applications are needed. These L port valves can be used as either a diverter valve or a selector valve. When using as a diverter valve, inlet flow to the center inlet port is diverted to either side outlet port one or side outlet port two. When using as a selector valve, there are two separate inlet ports (side ports) and one common outlet port (center port). Highly polished internals (8- 12 Ra finish) and virgin PTFE ball seats are standard. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations. Note: 3A standard 68-00 requires a minimum 1" clearance between valve and actuator. Valworx High Temp kit can be used to satisfy this requirement.
