4" High Performance Butterfly Valve, Wafer, RPTFE, 24- 240V
Stock #
569904
Series
5699
List Price: $2,154.15
Price: $1,723.32
- Buy 3 for $1,550.99 each and save 10%
Usually Ships: Same Day

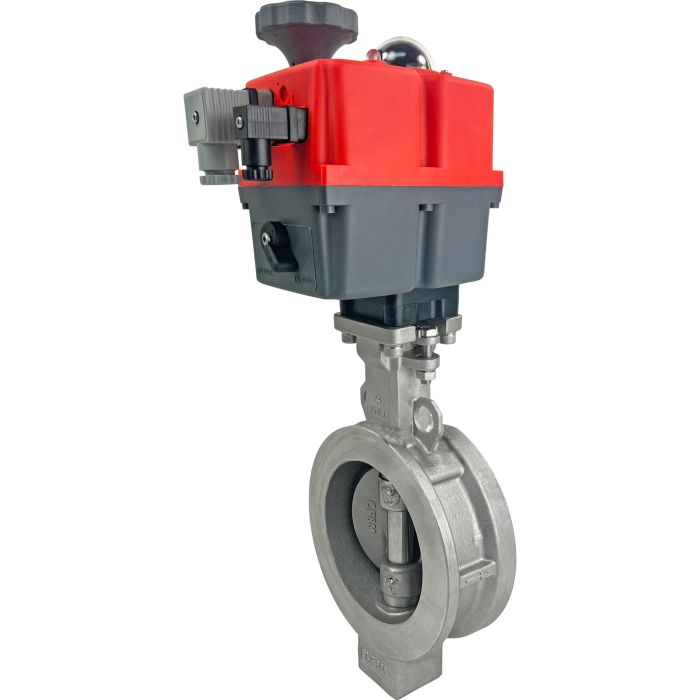

Valworx 569904 high performance stainless steel butterfly valve for on-off control of air, oil and other media compatible with the materials of construction. Wafer style valve sandwich mounts between standard ANSI / ASME Class 125 / 150 flanges. Standard unit is power-to-open and power to close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a flat gear system rotates the disc. The motor is automatically stopped by internal cams striking micro switches at both open and closed positions. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.
High Performance Butterfly Valve Standard Features316 stainless steel (CF8M) body Double offset design greatly reduces seal wear. 17-4PH stainless steel, single piece shaft RPTFE valve seats and stem seals Heavy duty, single piece cast and machined disc with integral mounting sleeve Spring-loaded seat cover for easier removal and replacement of valve seat Integral ISO 5211 mounting pad eliminates additional mounting brackets
Electric Actuator Standard FeaturesHighly visible LED light gives continuous actuator status indication Multi-voltage capable with auto-voltage sensing Electronic torque limiter - protects against valve jams without causing damage to the actuator Standard anti-condensation heater Manual override with visual dome style valve position indicator All electrical connections via external DIN plugs (included) - no need to remove cover for wiring or service Two auxiliary dry contact limit switches for confirming open/closed valve position Rugged IP67 dust and watertight enclosure, CE marked
Options (see Accessories tab)
High Performance Butterfly Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Actuator Temperature Range | -4 to 158°F (-20 to 70°C) |
|---|---|
| Anti-Condensation Heater | 4 watts thermostatically controlled |
| Current Rating | 0.433A @ 110VAC, 0.18A @ 240VAC, 1.50A @ 24VAC; 1.22A @ 24VDC (full load amps) |
| Cycle Time | 29 seconds per 90° rotation (no load) |
| Disc | Single piece, machined 316 stainless steel |
| Disc Seat/Liner | RPTFE |
| Disc Size | 3.78 inches |
| Duty Cycle | 75% |
| Electrical Connections | DIN plug with round cable entry (optional 1/2" conduit plugs, prewired plugs with cables) |
| Enclosure | Anti-corrosive polyamide, SS fasteners |
| Enclosure Protection | IP67 dust and watertight, UV protection |
| Flow Factor | Cv 400 (Cv = number of GPM of 60 °F water at 1 psi pressure drop) |
| Over-load Protection | Electronic over-torque with LED status light |
| Pipe Size | 4 inch (DN80) |
| Pressure Rating | 285 PSI (19.6 Bar), 29 inHg vacuum |
| Stem Packing | RPTFE |
| Suitable Flanges | ANSI /ASME B16.5 Class150, MSSSP44 Class 150, API605 Class 150, JIS B2212 10K, JIS B2212 16K |
| Type | Electric Actuated High Performance Butterfly Valve- Multivoltage |
| Valve Body | 316 Stainless Steel |
| Valve Position Confirmation | 2 x SPST dry contact limit switches rated 250v/3A resistive load |
| Valve Temperature Range | -20 to 500 °F (-29 to 260 °C) |
| Voltage | 24 to 240 Volts AC/DC (1 ph,50/60Hz) auto-voltage sensing |
