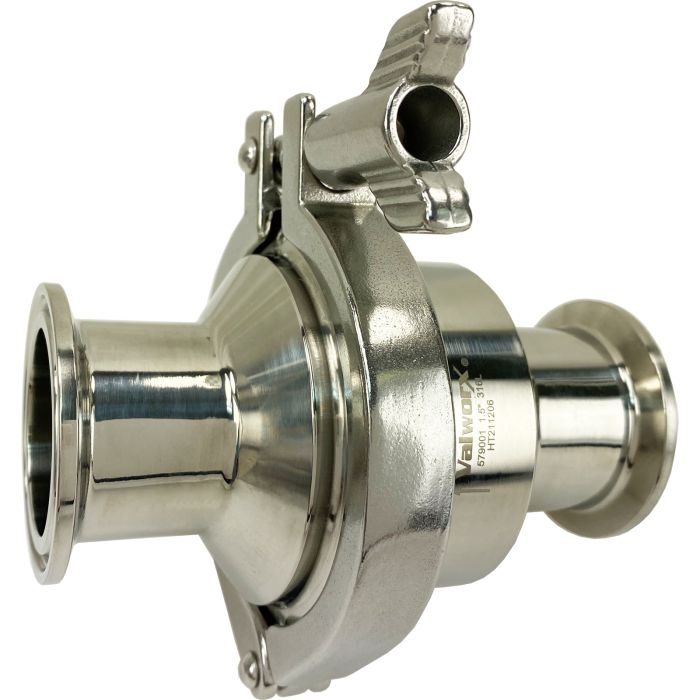

1-1/2" Sanitary Check Valve, Tri-Clamp
SKU
579001
Series
5790
List Price: $165.47
Price:
$132.38
- Buy 3 for $119.14 each and save 10%
Valworx 579001 stainless steel sanitary check valves are typically used to prevent unwanted backflow for food, beverage, pharmaceutical, personal care, and pet care applications where 3-A sanitary construction is required. Suitable for vertical installation or horizontal where self-draining is not required. Concentric spring loaded design. Highly polished internals (32 Ra finish). Viton seats and seals. Clamp design for easy disassembly, cleaning, and maintenance
Full Port for Unrestricted Flow 32 Ra finish on all internal surfaces Stainless steel spring and retaining ring Viton seats and seals All materials comply with FDA, USDA and 3-A requirements Viton Stem Seal Design Standard Tri-Clamp ends for hygienic connections All valves are 100% tested with full traceability of all components
| Body/End Caps | ASTM 316 stainless steel |
|---|---|
| Clamp | ASTM 304 stainless steel |
| Disc Assembly | ASTM 316 stainless steel |
| Internal Finish | 32 Ra |
| Pipe Size ~ Tri-Clamp | 1-1/2" ~ 1-1/2" |
| Port Size | Full port, 1.4 inch orifice, Cv 21 |
| Pressure (Max) | 217 PSI |
| Retaining Ring | ASTM 316 stainless steel |
| Spring | ASTM 316 stainless steel |
| Stem Seals | Viton |
| Temperature Range | -67 to 482 °F (-55 to 250 °C) |
| Type | 2-Way |
Tri Clamp
-
1-1/2" Sanitary Check Valve Seal Kit, VitonStock #: R5790XX01Usually Ships: Same DayPrice: $11.69 -
1-1/2" Sanitary Check Valve Seal Kit, SiliconeStock #: R5790XX06Usually Ships: Same DayPrice: $6.27
