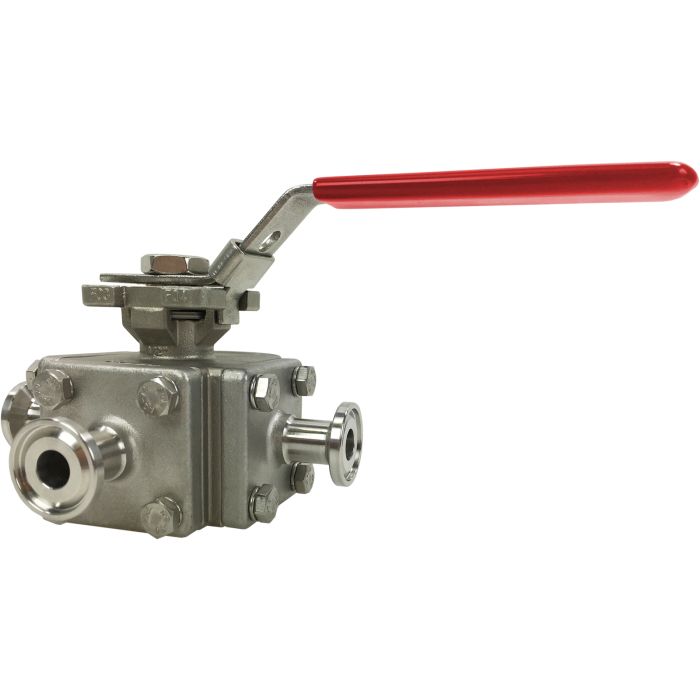

1/2" Sanitary 3-Way Ball Valve, L-Port, Direct Mount, Tri-Clamp

SKU

573100C

Series

5731

List Price: $585.00

Price: $468.00

Buy 3 for $405.00 each and save 13%

Description

Valworx 573100C stainless steel sanitary 3-way ball valves are typically used for food, beverage, pharmaceutical, personal care and pet care applications where sanitary construction is required, as well as for utility, process and corrosive environment applications where quick clamp applications are needed. These L port valves can be used as either a diverter valve or a selector valve. When using as a diverter valve, inlet flow to the center inlet port is diverted to either side outlet port one or side outlet port two. When using as a selector valve, there are two separate inlet ports (side ports) and one common outlet port (center port). Highly polished internals (8- 12 Ra finish) and Dyneon PTFE ball seats are standard. Easy mounting of electric or pneumatic actuators with the industry standard ISO5211 direct mounting pad. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations.

Full Port for Unrestricted Flow

8- 12 Ra finish on all internal surfaces

Dyneon PTFE ball seats and cavity fillers

All materials comply with FDA and USDA requirements

Triple PTFE/Viton Stem Seal Design, Live Loaded

Standard Tri-Clamp ends for sanitary connections

Actuator Ready ISO5211 Direct Mounting Pad

All valves are tested per API 598
