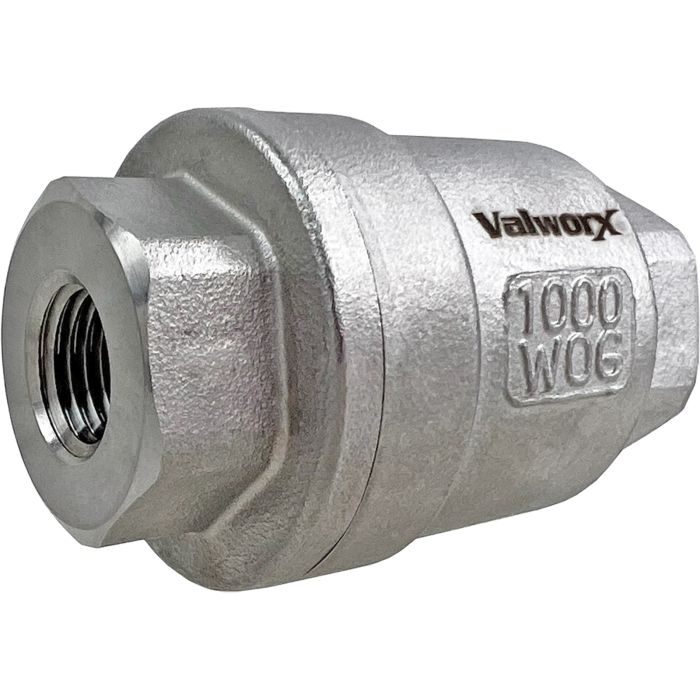

1/4" Stainless Spring Check Valve, NPT
SKU
549802
Series
5498
List Price: $30.90
Price:
$24.72
Stainless steel check valves are typically used to prevent unwanted backflow for water, air, oil and other media compatible with the materials of construction. Suitable for vertical installation or horizontal where self-draining is not required. Concentric spring loaded design reduces water hammer. Viton seats and PTFE seals.
Stainless steel body Stainless steel spring & disc Viton disc seat PTFE seals NPT threaded ends
| Body/End Caps | ASTM 316 stainless steel (CF8M) |
|---|---|
| Body Seals | PTFE |
| Cracking Pressure | 0.6 PSI |
| Disc Seat | Viton |
| Pipe Size | 1/4" |
| Plate Washer/Nut | ASTM 304 stainless steel |
| Port Size | Full port, 0.4 inch orifice, Cv 1.8 |
| Pressure (Max) | 1000 PSI |
| Spring | ASTM 316 stainless steel |
| Stem/Disc | ASTM 316 stainless steel (CF8M) |
| Temperature Range | -13 to 356 °F (-25 to 180 °C) |
| Type | 2-Way |
