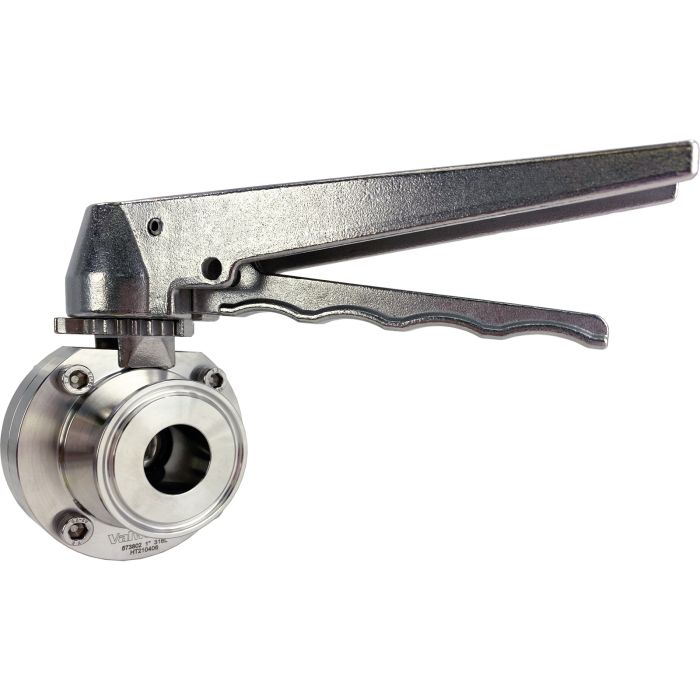

1" Sanitary Butterfly Valve, Tri-Clamp w/ Handle

SKU
574002
Series
5740

List Price: $104.00

Price: $83.20
  • Buy 3 for $74.88 each and save 10%
- +
Valworx 574002 sanitary butterfly valves are typically used for food, beverage, pharmaceutical, personal care and pet care applications where sanitary construction is required, as well as for utility, process and corrosive environment applications where quick clamp applications are needed.

Forged valve bodies are machined and chamfered in a single set-up for a precise fit.
  • Single piece disc/stem with disc polished to mirror finish
  • 32 Ra finish on all wetted surfaces
  • EPDM seat materials meets FDA CFR 177.2600
  • All materials comply with FDA and USDA requirements
  • 316L stainless steel valve body and disc for superior corrosion resistance
  • Standard Tri-Clamp ends for sanitary connections
  • 304 stainless steel handle with trigger position control
  • All valves are tested per API 598
  • Suitable for vacuum up to 29.5inHg
  • More Information
    BodyASTM 316L stainless steel
    Bolts/NutsASTM 304 stainless steel
    BushingsPolypropylene
    Disc/StemASTM 316L stainless steel
    Internal Finish32 Ra
    Pipe Size1" ~ 1 1/2"
    Port Size0.9 inch orifice, Cv 23
    Pressure (Max)160 PSI WOG
    Temperature Range-67 to 302 °F (-55 to 150 °C)
    Type2-Way
    Valve SeatEPDM
