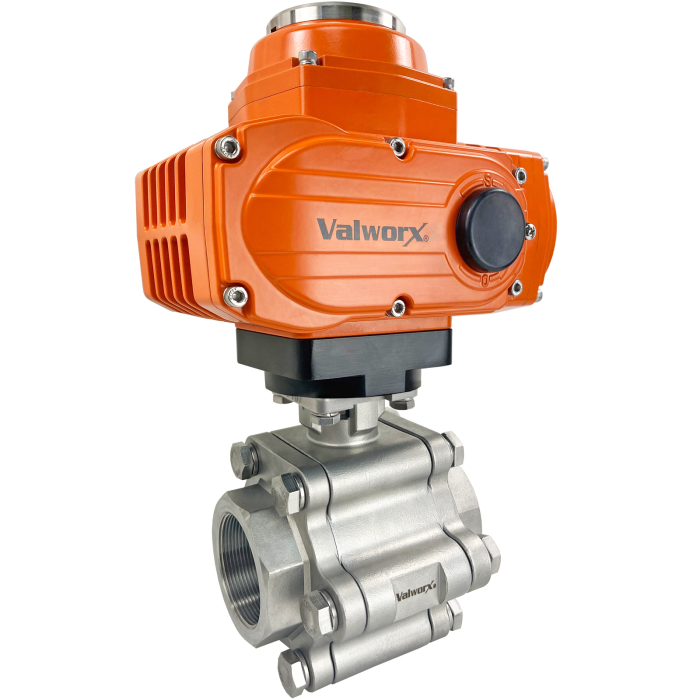

2" Explosion Proof High Pressure Stainless Ball Valve 110 VAC, EPS Positioner
Stock #
588416
Series
5884
List Price: $2,698.00
Price: $2,158.40
- Buy 3 for $1,942.56 each
Usually Ships: Same Day
Valworx 588416 explosion proof high pressure stainless steel ball valve is used for positioning control of water, air, oil, and other media compatible with the materials of construction. Fire safe approved per API 607. The EPS- Electronic Positioning System provides an accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Any change in the control input signal results in a corresponding and proportional change in the position of the ball. The internal microprocessor and closed loop feedback system continuously monitors and maintains accurate valve position. The valve will remain in the last known position with loss of electric power.
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Valworx does not recommend the use of high temperature brackets with explosion proof actuators. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators certified for UL Class I Div I Groups C & D, and are tested to rigorous UL and CSA standards and certified by CSA.
Ball Valve Standard Features2000 PSI working pressure (see P/T chart) Fire safe approved per API 607 Braided graphite stem seals 3-piece swing out design for easy maintenance Direct mounting valve per ISO5211 Full port for unrestricted flow 316 stainless steel body, ball and stem Blow out proof stem RTFE ball seats extend cycle life
Electric Actuator Standard FeaturesExplosion proof rated for UL Class I Div I Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC T5 Gbs Rugged Type 4X weatherproof aluminum alloy enclosure Visual valve position indicator Manual override Heavy duty motor with overload protection Two auxiliary limit switches to confirm valve positions Self-locking all metal gear drive, no additional brake required CSA Listed per UL429 and CSA C22.2, CE mark as well as ExP ratings listed above
Options (see Accessories tab)
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Valworx does not recommend the use of high temperature brackets with explosion proof actuators. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators certified for UL Class I Div I Groups C & D, and are tested to rigorous UL and CSA standards and certified by CSA.
Ball Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Type | Explosion Proof Electric Actuated High Pressure Stainless Ball Valve- Positioner |
|---|---|
| Actuator Voltage | 110 VAC 50/60Hz |
| Current Rating | 0.63A (full load amps) |
| Cycle Time | 30 seconds per 90° rotation |
| Duty Cycle | 70% |
| Pipe Size | 2" NPT female |
| Full Port Orifice Size (inches) | 2.00 |
| Cv | 313.1 |
| Pressure Rating | 2000 PSI |
| Valve Temperature Range | -4 to 392°F (-20 to 200°C) |
| Actuator Temperature Range | -13 to 131°F (-25 to 55°C) |
| Valve Body/Ball | 316 SS |
| Body/Ball Material | 316 Stainless Steel |
| Ball Seat Material | RTFE (reinforced Teflon) |
| Stem Seal Material | Braided Graphite/ FKM (Viton) |
| Enclosure | Aluminum alloy, polyester painted, SS fasteners |
| Enclosure Protection | IP67, NEMA 4, 4X weatherproof |
| Electrical Connections | Two 1/2" NPT threaded ports. Requires Exp rated connector or pipe (not included) |
| Valve Position Confirmation | 2 x SPST auxiliary limit switches rated 3A@125/250VAC, 30VDC resistive load |
| Output signal | 4-20mA output monitoring signal (same type as input signal) |
| Valve Position Indicator | Dial Indicator |
| Manual Override | 5mm hex drive with protective cover |
| Motor Protection | Thermal overload |
| Explosion Proof Approval | UL Class I Div I Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC T5 Gb |
| Max Fluid Velocity | 10 feet per second |
