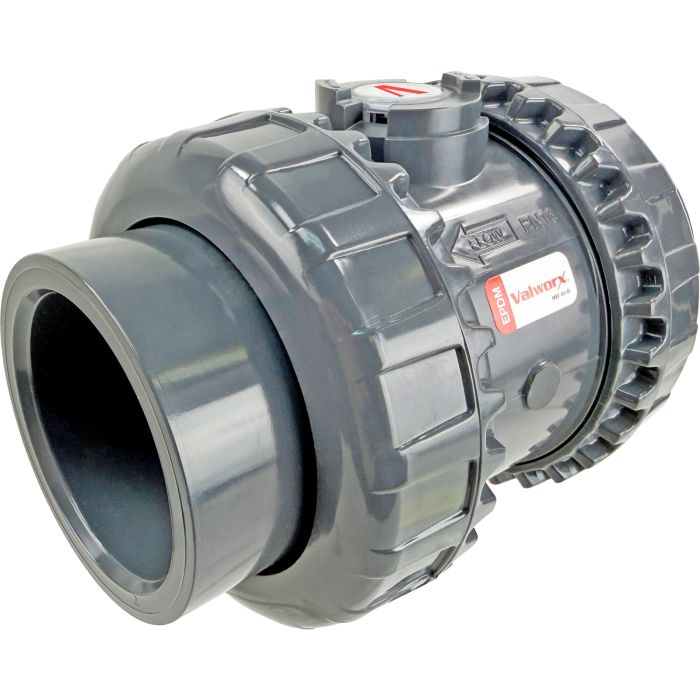

2" PVC Ball Check Valve
Stock #
549732
Series
5497
List Price: $324.68
Price: $259.74
- Buy 3 for $233.77 each
Usually Ships: Same Day
PVC check valves are typically used as backflow preventers for water, oil and other media compatible with the materials of construction. Suitable for vertical installation or horizontal where self-draining is not required. Flow rates for ball check valves may be less than other types of check valves.
PVC check valves should not be used for compressed air or gas installation.
PVC construction Fully machined ball True union fitting for easy installation EPDM seals Socket (PS) and Threaded (FNPT) connectors included
PVC check valves should not be used for compressed air or gas installation.
| Type | 2-Way |
|---|---|
| Pipe Size (in)-Specs | 2" (both IPS glue socket and NPT end connectors included) |
| Full Port Orifice Size (inches) | 2.38 |
| Cv | 93.2 |
| Pressure Rating | 232 PSI |
| Back Pressure (min) | 3 PSI |
| Temperature Range | 15 to 230°F (-9 to 110°C) |
| Ball | PVC |
| Ball Seat Material | EDPM |
| Body | PVC |
| End Connectors | PVC |
| Seals | EPDM |
Please email sales@valworx.com to request the specific files you need. Include the stock number of the valve and any accessories with your request.
