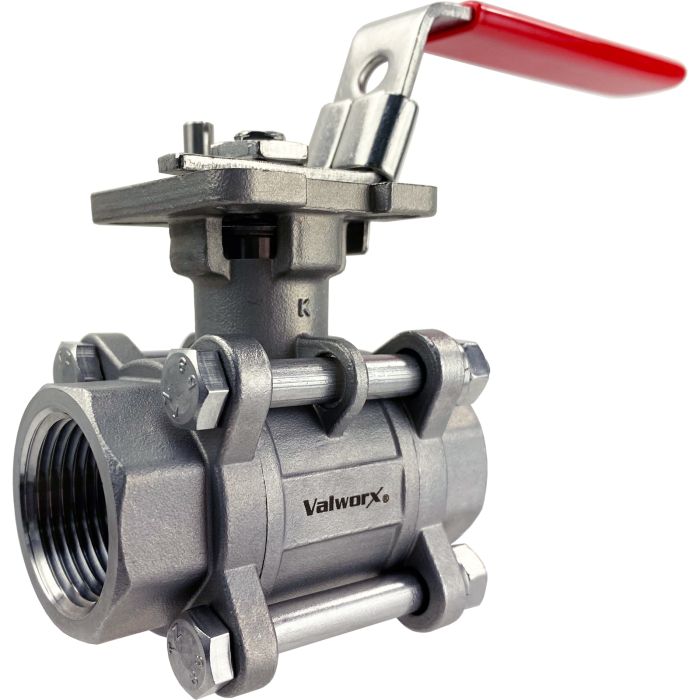

1" 3-Piece Stainless Ball Valve - Direct Mount
SKU
551508C
Series
5515
List Price: $168.48
Price:
$134.78
- Buy 3 for $121.31 each and save 10%
Valworx 551508C stainless steel 3-piece ball valves are designed for use with water, air, oil, and other media compatible with the materials of construction. Unique three piece investment cast bolted body design offers the advantage of a swing out body for easy inline maintenance. Low operating torque with quarter turn latch-locking handle. Removing handle allows for easy mounting of electric or pneumatic actuators with the industry standard ISO5211 direct mounting pad. This ensures precision shaft alignment and eliminates the need for additional brackets and couplings. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations. All valves are tested per API 598.
Full Port for Unrestricted Flow 316 Stainless Steel Body, Ball and Stem Blow Out Proof Stem RTFE Ball Seats Extend Cycle Life and Reduce Torque Triple PTFE/Viton Stem Seal Design, Live Loaded Latch Locking Handle (Padlockable) Actuator Ready ISO5211 Direct Mounting Pad
| Ball Seats | PTFE (Teflon) |
|---|---|
| Body/Ball | 316 stainless steel (ASTM A351 CF8M) |
| Bolts/Nuts | 304 stainless steel |
| Handle | 304 stainless steel with vinyl grip |
| ISO 5211 Mount | F03/F05, 9mm square stem |
| Max Fluid Velocity | 10 feet per second |
| Pipe Size | 1" NPT female |
| Port Size | Full port, 1.00 inch orifice,Cv 55.4 |
| Pressure (Max) | 1000 PSI CWP (see P/T chart ), Vacuum 29inHg, Steam 125 PSI |
| Stem Seals | PTFE/ Viton (live loaded and adjustable) |
| Stem | 316 Stainless Steel |
| Temperature Range | -4 to 392 °F (-20 to 200 °C) |
