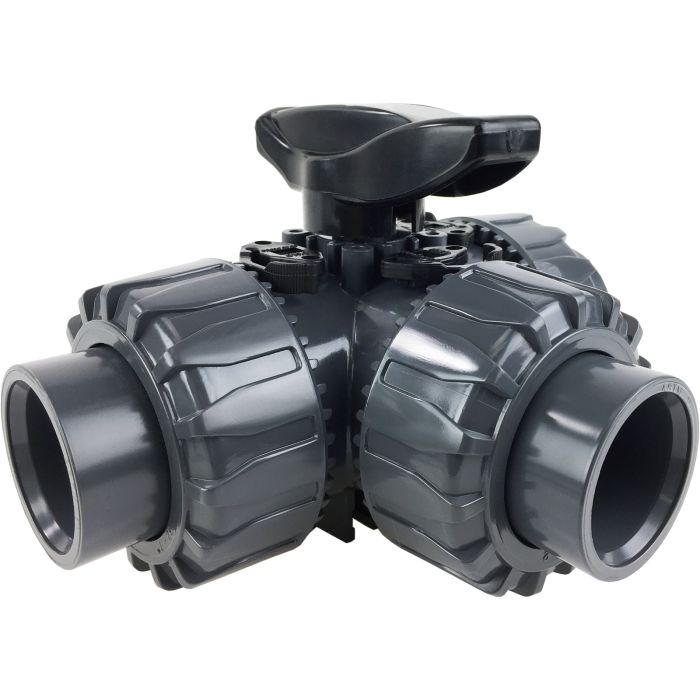

1" 3-Way L-port PVC Ball Valve - EPDM/Teflon Seals
SKU
551408
Series
5514
List Price: $234.41
Price:
$187.53
- Buy 3 for $168.78 each and save 10%
Valworx 551408 True Union 3-way L-port PVC ball valves are used in flow diverter or selector applications. Corrosion resistant valves are suitable for use with water and other liquid media compatible with the materials of construction (not recommended for use with compressed air or gas). Ideal for industrial applications and where NSF certified construction is required for potable/drinking water. Turning the handle one quarter turn rotates the ball from position 1 to position 2. Four (4) energized Teflon ball seats allows for full pressure at any port, lowers the required operating torque and extends the cycle life. Dual stem seals and adjustable ball seat carriers contribute to a leak free design. Machined ball and stem connection after molding provides a precision fit. Unique union nut locking device prevents back-off due to vibration or thermal cycling. Valves are actuator ready with optional ISO5211 mounting kit.
Pressure rated 232 PSI (16 Bar) Full Port design Four ball seat design allows full pressure at any port Energized PTFE ball seats for lower torque and extended life Leak free dual stem seal design Union nut locking device prevents back-off Micro-adjustable ball seat carrier Series 5514 NSF/ANSI/CAN 60 and NSF/ANSI 372 certified valve for potable drinking water Includes IPS glue sockets and NPT end connectors
| Ball | PVC |
|---|---|
| Ball Seats | (4) PTFE (Teflon) energized with EPDM |
| Pipe Size | 1 inch (both NPT and socket end connectors included) |
| Port Size | Full Port, Cv 17 |
| Pressure (Max) | 232 PSI at 73 °F liquid only, no air or gas (see P/T chart) |
| Stem Seals | (2) EPDM |
| Temperature Range | 40 to 140 °F (see P/T chart) |
| Type | 3-way L-port Diverter or Selector |
| Valve Body | PVC (gray) |
