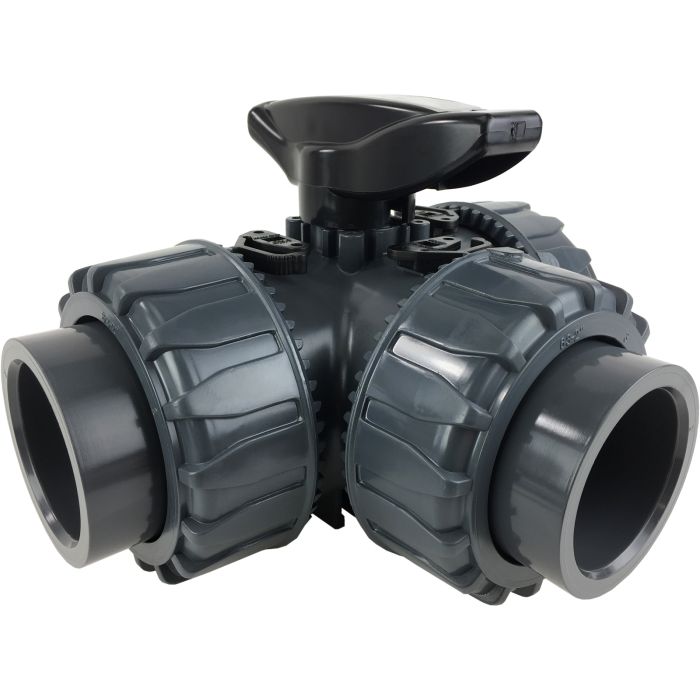

2" 3-Way T-port PVC Ball Valve - EPDM/Teflon Seals

Valworx 551436 True Union 3-way T-port PVC ball valves are used as a flow diverter or mixing function. Corrosion resistant valves are suitable for use with water and other liquid media compatible with the materials of construction (not recommended for use with compressed air or gas). Ideal for industrial applications and where NSF certified construction is required for potable/drinking water. The handle can be rotated to any one of four positions, each having a different flow paths. Four (4) energized Teflon ball seats allows for full pressure at any port, lowers the required operating torque and extends the cycle life. Dual stem seals and adjustable ball seat carriers contribute to a leak free design. Machined ball and stem connection after molding provides a precision fit. Unique union nut locking device prevents back-off due to vibration or thermal cycling. Valves are actuator ready with optional ISO5211 mounting kit.

Pressure rated 232 PSI (16 Bar)

Full Port design

Four ball seat design allows full pressure at any port

Energized PTFE ball seats for lower torque and extended life

Leak free dual stem seal design

Union nut locking device prevents back-off

Micro-adjustable ball seat carrier

Series 5514 NSF/ANSI/CAN 60 and NSF/ANSI 372 certified valve for potable drinking water

Includes IPS glue sockets and NPT end connectors
