7-Conductor Cable for 5618 Series Electric Actuators- 8ft
Stock #
588008A
Series
Accessory
List Price: $35.46
Price: $28.37
- Buy 10 for $25.53 each
Usually Ships: Same Day

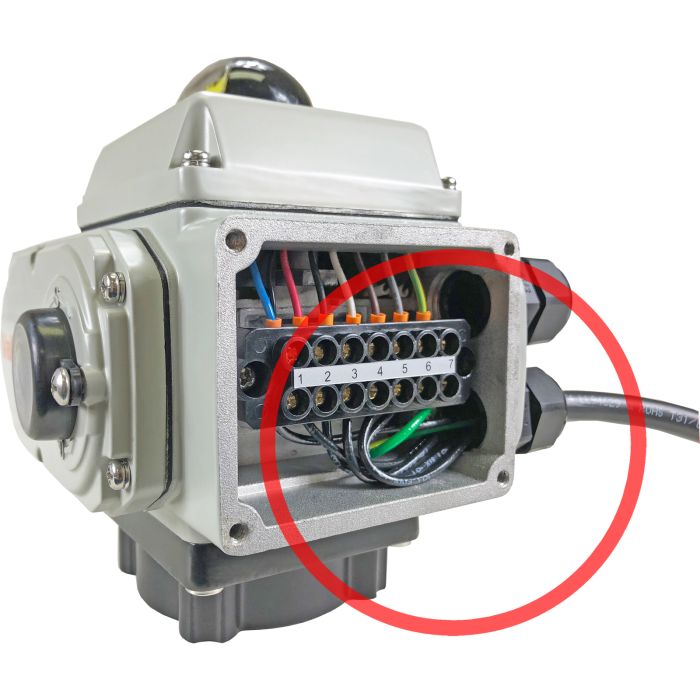

7-Conductor cable for use with all 5618-series actuators. Simplify wiring of electric actuators and ensure a tightly sealed cable connection. Conductors are individually numbered for easy identification. UL-approved for direct burial, sunlight and oil-resistant applications.
Note: Some actuators may not require all seven conductors.
Note: Some actuators may not require all seven conductors.
| Type | Voltage |
|---|---|
| Actuator Voltage | 0- 600 VAC/DC |
| Current Rating | 12 Amps per conductor at 30°C |
| Temperature Range | -13 to 194°F (-25 to 90°C) |
| Disc Seat/Liner | EPDM |
| Cable Length | 8 feet (~2.5 meters) |
| Cable O.D. | 9.5 mm |
| Cable Type | Black PVC |
| Wire Size (max) | 18/7 AWG |
Please email sales@valworx.com to request the specific files you need. Include the stock number of the valve and any accessories with your request.
