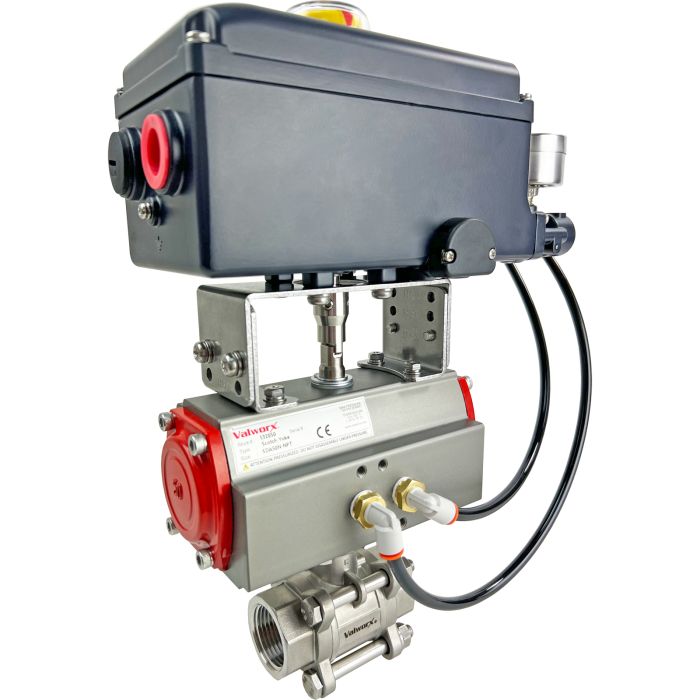

1" V-Port Stainless Steel Ball Valve, Air Actuated Scotch Yoke w/Limit Switch
Stock #
550908
Series
5509
List Price: $1,757.05
Price: $1,405.64
- Buy 3 for $1,265.08 each
Usually Ships: Same Day
Select the desired V-port vertex angle (30°, 60°, or 90°) from the Accessories tab.
Valworx 550908 air actuated stainless steel V-port valves with limit switch are designed for applications requiring precise flow control. Suitable for use with water, air, oil, and other media compatible with the materials of construction. The valve has a three piece investment cast bolted body design with the advantage of a swing out body for easy inline maintenance. The pre-installed digital smart positioner provides fast and accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Multi-function display shows valve position, target position and other selectable parameters. The positioner also includes a dome indicator and position confirmation switches, thereby doubling as a limit switch. Double acting actuator requires air to open and air to close. The valve will remain in the last position with loss of supply air or electric signal.
All valves tested per API 598.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard Features1000 PSI working pressure (see P/T chart) Direct mounting valve per ISO5211 V-port valves available in 30, 60 & 90° vertex angles 316 stainless steel body, ball and stem Blow out proof stem RTFE ball seats extend cycle life Triple PTFE/Viton stem seal design, live loaded
Pneumatic Actuator Standard FeaturesExtended cycle life (1 million cycles) Quarter turn Scotch Yoke design Dry or lubricated pilot air Factory lubricated for normal life Anodized aluminum body with epoxy-polyester coated end covers
Digital Smart Positioner Standard Features4- 20mA control signal and output signal Highly precise Linearity/Hysteresis/Sensitivty Multi-function digital display Rugged IP66 weatherproof aluminum enclosure Installed, calibrated and tested Highly visual dome indicator Includes two SPDT limit switches for position confirmation
Valworx 550908 air actuated stainless steel V-port valves with limit switch are designed for applications requiring precise flow control. Suitable for use with water, air, oil, and other media compatible with the materials of construction. The valve has a three piece investment cast bolted body design with the advantage of a swing out body for easy inline maintenance. The pre-installed digital smart positioner provides fast and accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Multi-function display shows valve position, target position and other selectable parameters. The positioner also includes a dome indicator and position confirmation switches, thereby doubling as a limit switch. Double acting actuator requires air to open and air to close. The valve will remain in the last position with loss of supply air or electric signal.
All valves tested per API 598.
High temperature valve mounting kit available for extended temperature range or wall mounting applications.
Ball Valve Standard Features
Pneumatic Actuator Standard Features
Digital Smart Positioner Standard Features
| Type | Air Actuated V-Port Ball Valve- Positioner w/Limit Switch |
|---|---|
| Rotation | 0-90° (clockwise or counter-clockwise) |
| Cycle Time | Approx. 1/1 second open/close per 90° rotation |
| Pipe Size (in)-Specs | 1" NPT female |
| Cv V-Port | 4.8/10.1/29.0 |
| Pressure Rating | 1000 PSI |
| Valve Temperature Range | -4 to 392°F (-20 to 200°C) |
| Actuator Temperature Range | -4 to 167°F (-20 to 75°C) |
| Valve Body/Ball | 316 SS |
| Body/Ball Material | 316 Stainless Steel |
| Ball Seat Material | RTFE (reinforced Teflon) |
| Stem Seal Material | PTFE/ Viton (live loaded and adjustable) |
| Electrical Connections | 1/2" NPT female conduit |
| Valve Position Confirmation | 2 x SPDT limit switches rated 5A @ 220VAC |
| Output signal | 4-20mA output monitoring signal (same type as input signal) |
| Valve Position Indicator | Dome Indicator |
| Air Consumption (SCI per 90° cycle) | 0.9 SCFM @ 20 psi |
| Air Connections | 1/4" NPT |
| Actuator Seals | NBR |
| Actuator Enclosure Protection | IP66 & IP68 weatherproof |
| Flow Capacity | 8.8 SCFM @ 20 psi |
| Gauge Connections | 1/8" NPT |
| Impedance | 340 +/- 15 ohms |
| Hysteresis | +/- 0.3% F.S. |
| Linearity | +/- 0.5% F.S. |
| Mounting Bracket | Fits Namur 80x30 and 130x30 mounting holes with 20 or 30mm shaft height |
| Positioner Ambient Temperature | -22 to 176°F |
| Positioner Enclosure | Aluminum die casting |
| Positioner Enclosure Protection | General purpose, IP66 weatherproof |
| Positioner Input Signal | 4-20mA DC |
| Positioner Operating Temperature | -4 to 176°F |
| Repeatability | +/- 0.2% F.S. |
| Sensitivity | +/- 0.3% F.S. |
| Supply Pressure | 20 to 100 psi (filtered, dry, oil free air) |
| V-Port Orifice Size (inches) | 1.00 |
| Max Fluid Velocity | 10 feet per second |
