Block & Vent Valve
Stock #
529602
Series
5296
List Price: $85.47
Price: $68.38
- Buy 10 for $61.54 each
Usually Ships: Same Day

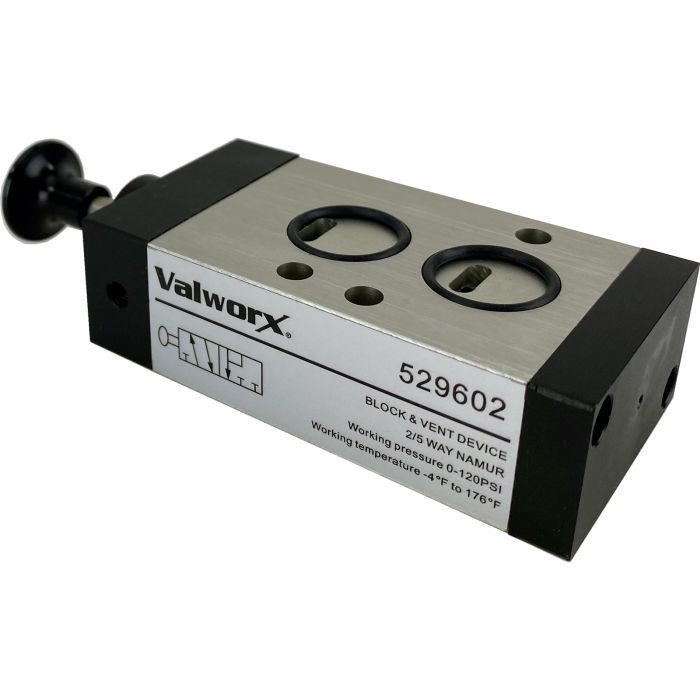

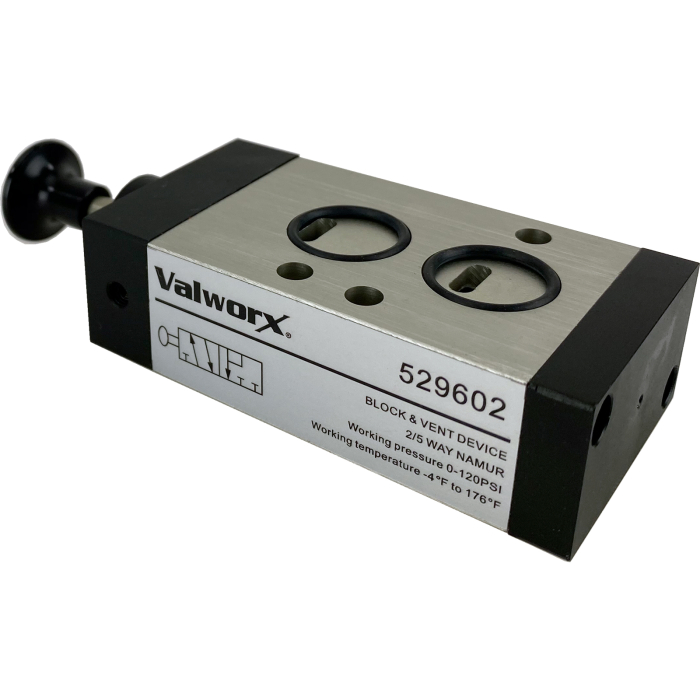

Valworx 529602 Block & Vent valve is used to de-energize pneumatic actuators and prevent further actuation. It is sandwich-mounted between the actuator and the pilot solenoid valve. Standard NAMUR mounting. Fits all Valworx scotch yoke and rack & pinion actuators. Normally used with declutchable manual override gear operators.
| Type | Block and vent valve for pneumatic actuators |
|---|---|
| Temperature Range | -4 to 176°F (-20 to 80°C) |
| Disc Seat/Liner | EPDM |
| Construction | Anodized aluminum body,brass,NBR seals |
| Mounting | Sandwich mount per Namur VDI/VDE-3845 Hardware |
| Mounting Hardware | (2) M5x55mm stainless socket cap screws (included) |
| Pressure | 0-120 PSI (0- 8 bar) |
