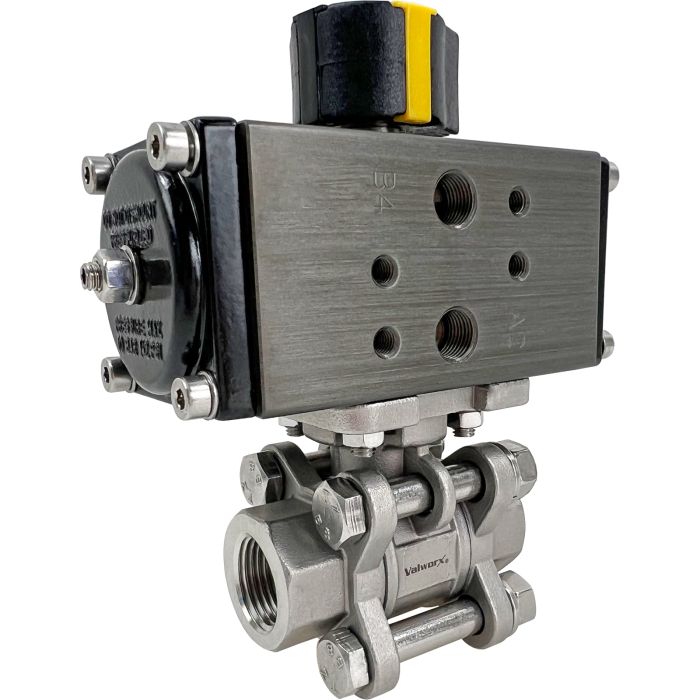

1/2" Compact Air Actuated 3-pc SS Ball Valve - Double Acting

Valworx 523104C Compact air actuated double acting 3-piece stainless steel ball valves are typically used for on-off control of air, water, oil, and other media compatible with the materials of construction. Double acting actuators use an air pressure signal (80-120 PSI) to open and close the valve. Advantages of air actuated ball valves over other type valves may include: higher flow rates, higher pressures, higher temperatures, wider media compatibility, straight through flow path, reduced water hammer, and use in hazardous environments. Ball valve can be mounted in any orientation.

Ball Valve Standard Features

1000 PSI working pressure (see P/T chart)

Direct mounting valve per ISO5211

Full port for unrestricted flow

316 stainless steel body, ball and stem

Blow out proof stem

RTFE ball seats extend cycle life

Triple RTFE/Viton stem seal design, live loaded and adjustable

Pneumatic Actuator Standard Features

Extended cycle life (1 million cycles)

Quarter turn rack & pinion design

Highly visible valve position indicator

Dry or lubricated pilot air

Factory lubricated for normal life

Anodized aluminum body with epoxy-polyester coated end covers

Namur & ISO mounting

Options (see Accessories tab)
