ISO DIN Plug with 16ft Cable for Solenoid Valves
Stock #
588013
Series
Accessory
List Price: $39.90
Price: $31.92
- Buy 10 for $28.73 each
Usually Ships: Same Day

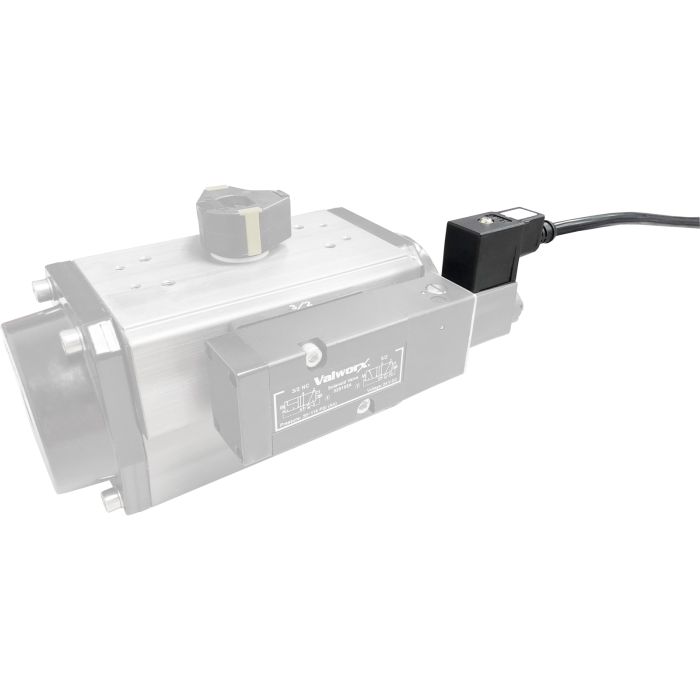

ISO molded DIN plug with 16ft cable for use with solenoid valves. Simplify wiring of solenoid valves, switches and other devices with pre-wired DIN plug cables. Molded plug assemblies provide a more secure installation, offer many technical advantages and save installation time, labor and cost. Considering the overall cost of the connector, wire and labor, prewired cable assemblies are generally much less expensive. Molded cable assemblies are rated IP67 for weatherproof applications.
Reversible DIN connector plug allows for easy installation and maintenance. An NBR gasket is used to seal between the plug and mating part. Plug is held in place with a small retaining screw.
Reversible DIN connector plug allows for easy installation and maintenance. An NBR gasket is used to seal between the plug and mating part. Plug is held in place with a small retaining screw.
| Type | Connector Type |
|---|---|
| Current Rating | 10 Amps |
| Temperature Range | 0 to 176°F (-18 to 80°C) |
| Disc Seat/Liner | EPDM |
| Enclosure Protection | IP67 weatherproof |
| Cable Length | 16.4 feet (5 meters) |
| Cable O.D. | 6.7 mm |
| Cable Type | Black PVC |
| Connector Type | ISO 43650 Form B |
| Housing | 20 x 28 mm square |
| Number of conductors | 3 |
| Pin Spacing | 11 mm (pin 1 to pin 2) |
| Wire Size | 18/3 AWG |
