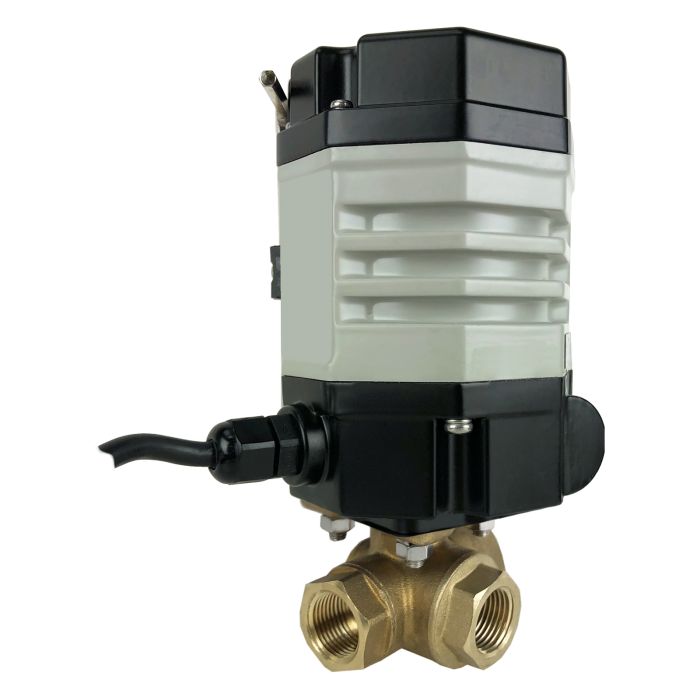

3/8" Compact Electric 3-way Brass L-Diverter Valve 110 VAC
SKU
568603
Series
5686
List Price: $500.71
Price:
$400.57
- Buy 3 for $360.51 each and save 10%
Valworx 568603 compact electric actuated 3-way FULL PORT lead free ball valves are used to control the flow of water, air, oil, and other media compatible with the materials of construction. These 3-way L-Port valves can be used as either a diverter or selector function due to the four ball seat design which allows full pressure at any port. Ideal where lead free and NSF approved construction are required for potable drinking water or other general industrial applications. Actuator uses power-to-open (position 2) and power-to-close (position 1), stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via an all metal gear drive rotates the ball one quarter turn. The motor is automatically stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position. There is no flow shutoff position with this type valve.
The ball valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Two auxiliary limit switches are provided to confirm valve position.
High performance ball and stem are made of 316 stainless steel rather than the typical plated brass. Energized PTFE ball seats are designed for low torque and extended cycle life. These ball valves offer a unique triple PTFE/Viton leak free stem seal design.
High temperature valve mounting kit available for extended temperature range or wall mounting applications. Suitable for vacuum to 29 inch Hg.
Ball Valve Standard FeaturesFull Port design Lead free brass body 400 PSI working pressure (see P/T chart) Direct mounting valve per ISO5211 Stainless steel ball and stem Four ball seat design allows for full pressure at any port Energized PTFE ball seats for extended cycle life and reduced torque and reduce torque Leak free triple PTFE/Viton stem seal design Certified per NSF372 and NSF61 for use with potable/drinking water
Electric Actuator Standard Features Quarter turn operation Rugged Type 4X weatherproof aluminum alloy housing Visual valve position indicator Manual override Heavy duty motor with overload protection Two auxiliary limit switches to confirm valve position All metal gear drive CSA Listed per UL429 and CSA C22.2, CE mark
The ball valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Two auxiliary limit switches are provided to confirm valve position.
High performance ball and stem are made of 316 stainless steel rather than the typical plated brass. Energized PTFE ball seats are designed for low torque and extended cycle life. These ball valves offer a unique triple PTFE/Viton leak free stem seal design.
High temperature valve mounting kit available for extended temperature range or wall mounting applications. Suitable for vacuum to 29 inch Hg.
Ball Valve Standard Features
Electric Actuator Standard Features
| Actuator Temperature Range | -22 to +140 °F (-30 to +60 °C) |
|---|---|
| Ball and Stem | 316 Stainless Steel |
| Ball Seats | (4) PTFE (Teflon) energized with FKM (Viton) |
| Current Rating | 0.3A (full load amps) |
| Cycle Time | 12 seconds per 90° rotation (no load) |
| Duty Cycle | 0.6 |
| Electrical Connections | Prewired cable with flying leads 3 meter (9.8 feet) |
| Enclosure | Aluminum alloy, polyester painted, SS fasteners |
| Enclosure Rating | Type 4X and IP67 weatherproof |
| Manual Override | 5mm hex drive with protective cover |
| Motor Protection | Thermal overload |
| Pipe Size | 3/8" NPT female |
| Port Size | Full Port, orifice 0.39 inches, Cv 3.5 |
| Pressure (Max) | 400 PSI CWP non-shock (see P/T chart), Vacuum service to 29" Hg, 25 PSI Steam with high temp. kit, |
| Stem Seals | PTFE (Teflon) with dual FKM (Viton) seals |
| Type | 3-way L-port Diverter or Selector |
| Valve Body | Lead Free Brass C69300 |
| Valve Position Confirmation | 2 x SPST auxiliary limit switches rated 3A 125/250VAC,30VDC resistive load |
| Valve Temperature Range | 0 to 344 °F (-18 to +173 °C) |
| Voltage | 110 VAC 50/60 Hz +/-10% |
