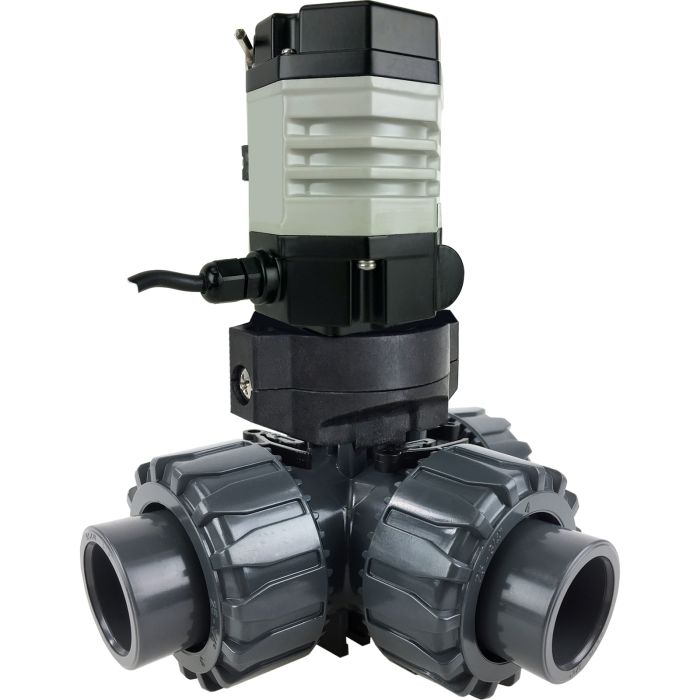

3/4" Compact Electric 3-way PVC T-port Ball Valve PTFE/EPDM, 110 VAC

Valworx 566406 compact electric actuated 3-way T-port PVC ball valves are typically used to control the flow of water and other liquid media compatible with the materials of construction (not suitable for air or gas). These valves can be used as either a diverter valve or selector valve. Ideal for applications where NSF certified construction is required for potable drinking water as well as other industrial applications. There is no flow shutoff position with this type valve. Actuator uses power-to-open (position 2) and power-to-close (position 1), stays in the last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via an all metal gear drive rotates the ball valve. The motor is automatically stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.

Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Two auxiliary limit switches are provided to confirm valve position. Typical applications include industrial/process piping, pulp and paper, food processing, water treatment and irrigation.

Ball Valve Standard Features

Industrial grade full port PVC ball valve

Tru Union nuts with locking device prevents back-off

Energized PTFE ball seats for lower torque and extended life

Four ball seat design allows for full pressure at any port

Leak free dual stem seal design

Micro-adjustable ball seat carrier

Pressure rated 232 PSI at 73°F

Series 5514 NSF/ANSI/CAN 60 and NSF/ANSI 372 certified valve for potable drinking water

Includes IPS glue sockets and NPT end connectors

Electric Actuator Standard Features

Quarter turn operation

Rugged Type 4X weatherproof aluminum alloy housing

Visual valve position indicator

Manual override

Heavy duty motor with overload protection

Two auxiliary limit switches to confirm valve position

All metal gear drive

CSA Listed per UL429 and CSA C22.2, CE mark
