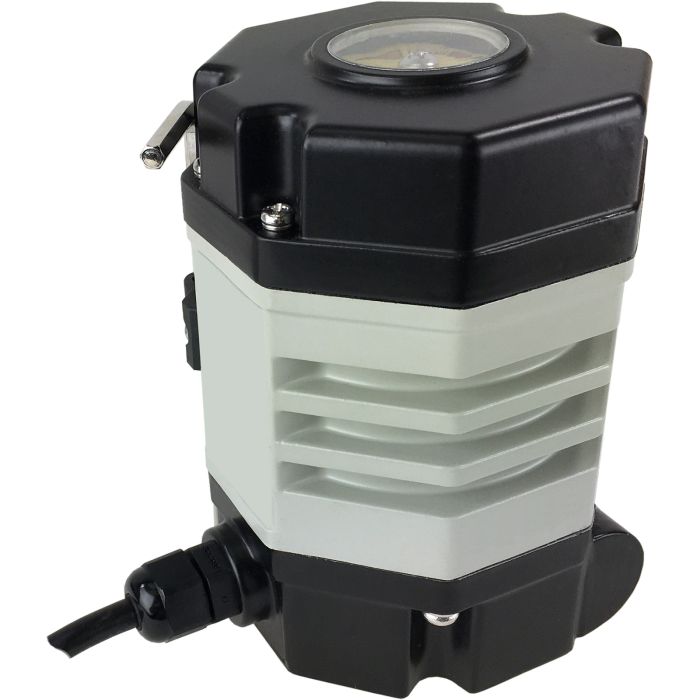

Compact Electric Actuator 160 in.lbs (18Nm), 110 VAC, EPS Positioner
SKU
561708
Series
5617
List Price: $898.80
Price:
$719.04
- Buy 3 for $647.14 each and save 10%
Compact Electric Actuator Standard FeaturesEPS-Electronic Positioning System Quarter turn operation Rugged Type 4X weatherproof aluminum alloy enclosure Visual valve position indicator Manual override Heavy duty motor with overload protection All metal gear drive Standard ISO5211 multi-flange valve mounting CSA Listed per UL429 and CSA C22.2, CE mark
Valworx 561708 electric actuator with EPS- Electronic Positioning System is controlled by a 4-20mA input control signal. Changing the input control signal results in a corresponding and proportional change in the position of the actuator output drive.
The EPS system provides an output position monitoring signal as standard.
These rugged electric actuators are typically used to automate quarter turn ball valves. The actuator is easy to install with international standard ISO5211 multi-flange mounting and a double square output drive. Unique integral motor/housing design provides higher torque in a very small package.
Actuators are tested to rigorous UL and CSA standards and certified by CSA.
Valworx 561708 electric actuator with EPS- Electronic Positioning System is controlled by a 4-20mA input control signal. Changing the input control signal results in a corresponding and proportional change in the position of the actuator output drive.
The EPS system provides an output position monitoring signal as standard.
These rugged electric actuators are typically used to automate quarter turn ball valves. The actuator is easy to install with international standard ISO5211 multi-flange mounting and a double square output drive. Unique integral motor/housing design provides higher torque in a very small package.
Actuators are tested to rigorous UL and CSA standards and certified by CSA.
| Approvals | CSA Listed. Conforms to UL Std 429 Certified to CSA Std C22.2 No. 139. CE Mark |
|---|---|
| Current Rating | 0.3A (full load amps) |
| Cycle Time | 12 seconds per 90° rotation (no load) |
| Duty Cycle | 0.6 |
| Electrical Connections | Prewired cable with flying leads 3 meter (9.8 feet) |
| Enclosure | Aluminum alloy, polyester painted, SS fasteners |
| Enclosure Protection | Type 4X and IP67 weatherproof |
| Input Command Signal | 4-20mA |
| ISO 5211 Mount | F03, F04, F05 (multi-flange) |
| Manual Override | 5mm hex drive with protective cover |
| Max Torque | 160 in lbs (18Nm) |
| Motor Protection | Thermal overload |
| Output Drive | 11mm double square (female) |
| Temperature Range | -22 to 140 °F (-30 to +60 °C) |
| Type | EPS Positioner |
| Valve Position Confirmation | 4-20mA Output Monitoring Signal |
| Voltage | 110 VAC 50/60 Hz +/- 10% |
| Working Rotation | 90° (quarter turn) |
