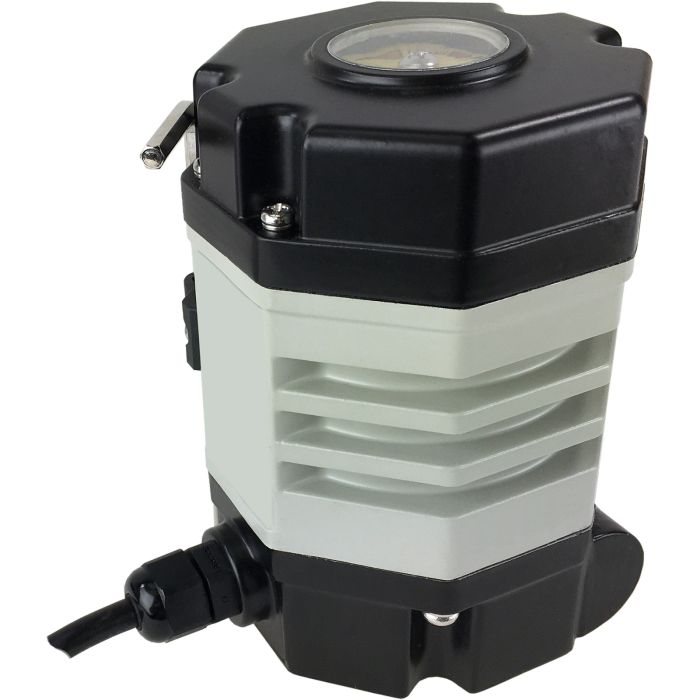

Compact Electric Actuator 160 in.lbs (18Nm), 24 VDC
SKU
561704
Series
5617
List Price: $520.02
Price:
$416.02
- Buy 3 for $374.41 each and save 10%
Compact Electric Actuator Standard FeaturesQuarter turn operation Rugged Type 4X weatherproof aluminum alloy enclosure Visual valve position indicator Manual override Heavy duty motor with overload protection Two auxiliary limit switches to confirm valve position All metal gear drive Standard ISO5211 multi-flange valve mounting CSA Listed per UL429 and CSA C22.2, CE mark
Valworx 561704 electric actuator uses power-to-open (position 1) and power-to-close (position 2), stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a rugged all metal gear drive rotates the output drive 90°. The motor is automatically stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the output drive position.
These electric actuators are typically used to automate quarter turn ball valves. Actuator is easy to install using standard ISO5211 multi-flange mounting and double square drive. Unique integral motor/housing design provides higher torque in a very small package.
Actuators are tested to rigorous UL and CSA standards and certified by CSA.
Valworx 561704 electric actuator uses power-to-open (position 1) and power-to-close (position 2), stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a rugged all metal gear drive rotates the output drive 90°. The motor is automatically stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the output drive position.
These electric actuators are typically used to automate quarter turn ball valves. Actuator is easy to install using standard ISO5211 multi-flange mounting and double square drive. Unique integral motor/housing design provides higher torque in a very small package.
Actuators are tested to rigorous UL and CSA standards and certified by CSA.
| Approvals | CSA Listed. Conforms to UL Std 429 Certified to CSA Std C22.2 No. 139. CE Mark |
|---|---|
| Current Rating | 0.7A (full load amps) |
| Cycle Time | 11 seconds per 90° rotation (no load) |
| Duty Cycle | 0.6 |
| Electrical Connections | Prewired cable with flying leads 3 meter (9.8 feet) |
| Enclosure | Aluminum alloy, polyester painted, SS fasteners |
| Enclosure Protection | Type 4X and IP67 weatherproof |
| ISO 5211 Mount | F03, F04, F05 (multi-flange) |
| Manual Override | 5mm hex drive with protective cover |
| Max Torque | 160 in lbs (18Nm) |
| Motor Protection | Thermal overload |
| Output Drive | 11mm double square (female) |
| Temperature Range | -22 to 140 °F (-30 to +60 °C) |
| Type | On-Off |
| Valve Position Confirmation | 2 x SPST auxiliary limit switches 3A 125/250VAC, 30VDC resistive load |
| Voltage | 24 VDC +/-5% |
| Working Rotation | 90° (quarter turn) |
