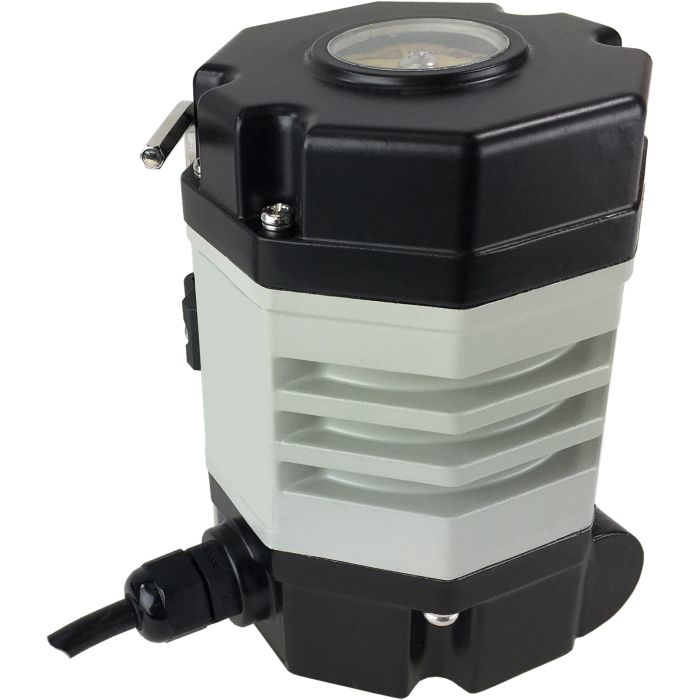

Compact Electric Actuator 160 in.lbs (18Nm), 24 VDC, EPS Positioner
Stock #
561709
Series
5617
List Price: $894.52
Price: $715.62
- Buy 3 for $644.05 each
Usually Ships: Same Day
Compact Electric Actuator Standard FeaturesEPS-Electronic Positioning System Quarter turn operation Rugged Type 4X weatherproof aluminum alloy enclosure Visual valve position indicator Manual override Heavy duty motor with overload protection All metal gear drive Standard ISO5211 multi-flange valve mounting CSA Listed per UL429 and CSA C22.2, CE mark
Valworx 561708 electric actuator with EPS- Electronic Positioning System is controlled by a 4-20mA input control signal. Changing the input control signal results in a corresponding and proportional change in the position of the actuator output drive.
The EPS system provides an output position monitoring signal as standard.
These rugged electric actuators are typically used to automate quarter turn ball valves. The actuator is easy to install with international standard ISO5211 multi-flange mounting and a double square output drive. Unique integral motor/housing design provides higher torque in a very small package.
Actuators are tested to rigorous UL and CSA standards and certified by CSA.
Valworx 561708 electric actuator with EPS- Electronic Positioning System is controlled by a 4-20mA input control signal. Changing the input control signal results in a corresponding and proportional change in the position of the actuator output drive.
The EPS system provides an output position monitoring signal as standard.
These rugged electric actuators are typically used to automate quarter turn ball valves. The actuator is easy to install with international standard ISO5211 multi-flange mounting and a double square output drive. Unique integral motor/housing design provides higher torque in a very small package.
Actuators are tested to rigorous UL and CSA standards and certified by CSA.
| Type | EPS Positioner |
|---|---|
| Max Torque | 140 in lbs (16Nm) |
| Rotation | 90° (quarter turn) |
| Actuator Voltage | 24 VDC |
| Current Rating | 0.7A (full load amps) |
| Cycle Time | 15 seconds per 90° rotation |
| Duty Cycle | 60% |
| Temperature Range | -13 to 131°F (-25 to 55°C) |
| ISO 5211 Mount | F03/F04/F05 |
| Enclosure | Aluminum alloy, polyester painted, SS fasteners |
| Enclosure Protection | IP67, NEMA 4, 4X weatherproof |
| Electrical Connections | Prewired cable with flying leads 3 meter (9.8 feet) |
| Input Control Signal | 4-20mA |
| Output signal | 4-20mA output monitoring signal (same type as input signal) |
| Valve Position Indicator | Dial Indicator |
| Manual Override | 5mm hex drive with protective cover |
| Motor Protection | Thermal overload |
| Approvals | CSA Listed. Conforms to UL Std 429 Certified to CSA Std C22.2 No. 139. CE Mark |
| Output Drive | 11mm |
