Digital Smart Positioner
SKU
529860
Series
5298
List Price: $1,170.50
Price:
$936.40

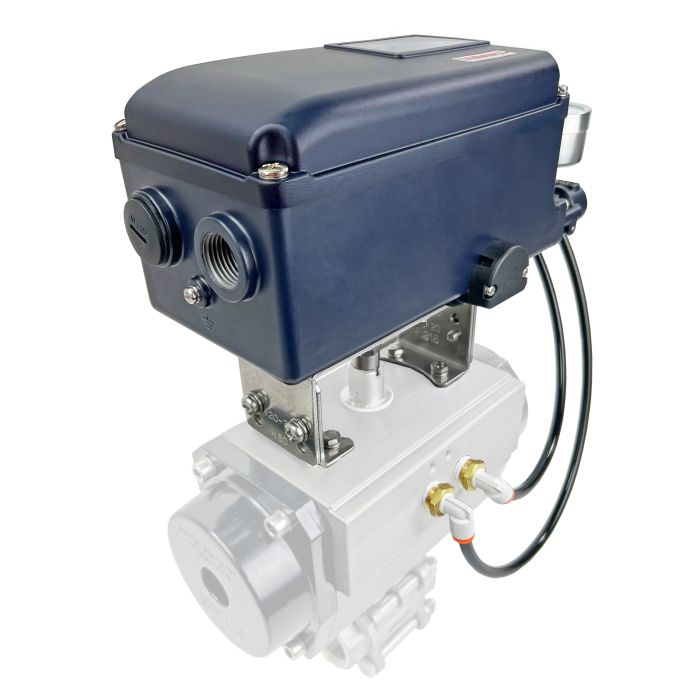

Digital smart positioners are used with rotary air actuators to accurately position control valves used in throttling applications. Valworx digital positioners offer fast and highly accurate control of ball valves, butterfly valves and other type valves. These positioners direct mount to rotary type air actuators with the standard VDI / VDE-3845 Namur style top shaft mounting. Universal Namur mounting bracket kit is included with each positioner. Suitable for use with Valworx double acting or spring return air actuated valves, as well as most other brands utilizing the standard Namur mount.
Rugged aluminum die cast housing has superior anti-corrosion surface treatment. Multi-function digital display shows valve position, target position and other selectable parameters. Easy auto-calibration sets zero and span automatically. Automatically senses actuator open-to-close rotation (clockwise or counter-clockwise). Positioner is PRE-INSTALLED and calibrated when ordered with a Valworx air actuated valve assembly. HART protocol compatible.
Rugged aluminum die cast housing has superior anti-corrosion surface treatment. Multi-function digital display shows valve position, target position and other selectable parameters. Easy auto-calibration sets zero and span automatically. Automatically senses actuator open-to-close rotation (clockwise or counter-clockwise). Positioner is PRE-INSTALLED and calibrated when ordered with a Valworx air actuated valve assembly. HART protocol compatible.
| Air Connections | 1/4" NPT |
|---|---|
| Air Consumption | 0.9 SCFM @ 20 psi |
| Ambient Temperature | -22 to 176 °F |
| Electrical Connections | 1/2" NPT female conduit |
| Enclosure | Aluminum die casting |
| Enclosure Rating | General purpose, IP66 weatherproof |
| Flow Capacity | 8.8 SCFM @ 20 psi |
| Gauge Connections | 1/8" NPT |
| Hysteresis | +/- 0.3% F.S. |
| Impedance | 340 +/- 15 ohms |
| Input Signal | 4-20mA DC |
| Linearity | +/- 0.5% F.S. |
| Mounting Bracket | Fits Namur 80x30 and 130x30 mounting holes with 20 or 30mm shaft height |
| Operating Temperature | -4 to 176 °F |
| Repeatability | +/- 0.2% F.S. |
| Rotation | 0-90 degree (clockwise or counter-clockwise) |
| Sensitivity | +/- 0.3% F.S. |
| Supply Pressure | 20 to 100 PSI (filtered, dry, oil free air) |
| Valve Position Confirmation | 4- 20mA output monitoring signal (same type as input signal) |
Installation Kit
-
Installation Kit, Pneumatic Positioner, 1/8" DAStock #: 529966AUsually Ships: Same DayPrice: $16.42 -
Installation Kit, Pneumatic Positioner, 1/4" DAStock #: 529967AUsually Ships: Same DayPrice: $16.42 -
Installation Kit, Pneumatic Positioner, 1/8" SRStock #: 529968AUsually Ships: Same DayPrice: $16.42 -
Installation Kit, Pneumatic Positioner, 1/4" SRStock #: 529969AUsually Ships: Same DayPrice: $16.42
