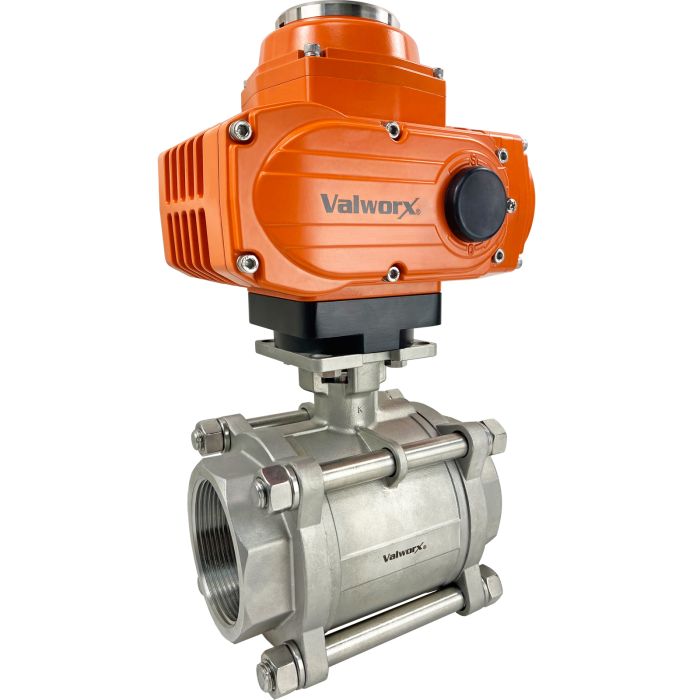

3" Explosion Proof 3 pc SS Ball Valve 110 VAC Positioner

Stock #

585824

Series

5858

List Price: $3,081.27

Price: $2,465.02

Buy 3 for $2,218.51 each

Usually Ships: Same Day

Description

Valworx 585824 explosion proof 3-piece stainless steel ball valve is used for positioning control of water, air, oil, and other media compatible with the materials of construction. Unique three piece investment cast bolted body design offers the advantage of a swing out body for easy inline maintenance. Positioning System provides an accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Any change in the control input signal results in a corresponding and proportional change in the position of the ball. The internal microprocessor and closed loop feedback system continuously monitors and maintains accurate valve position. The valve will remain in the last known position with loss of electric power.

The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Valworx does not recommend the use of high temperature brackets with explosion proof actuators. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators certified for UL Class I Div I Groups C & D, and are tested to rigorous UL and CSA standards and certified by CSA.

Ball Valve Standard Features

800 PSI working pressure (see P/T chart)

3-piece swing out design for easy maintenance

Direct mounting valve per ISO5211

Full port for unrestricted flow

316 stainless steel body, ball and stem

Blow out proof stem

RTFE ball seats extend cycle life

Triple PTFE/Viton stem seal design, live loaded

Electric Actuator Standard Features

Explosion proof rated for UL Class I Div I Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC T5 Gbs

Rugged Type 4X weatherproof aluminum alloy enclosure

Visual valve position indicator

Manual override

Heavy duty motor with overload protection

Self-locking all metal gear drive, no additional brake required

CSA Listed per UL429 and CSA C22.2, CE mark as well as ExP ratings listed above

Options (see Accessories tab)

Specifications

More Information
Type	Explosion Proof Electric Actuated 3 Piece Ball Valve- Positioner
Actuator Voltage	110 VAC 50/60Hz
Current Rating	0.63A (full load amps)
Cycle Time	30 seconds per 90° rotation
Duty Cycle	70%
Pipe Size (in)-Specs	3" NPT female
Full Port Orifice Size (inches)	3.15
Cv	454
Pressure Rating	800 PSI (see P/T chart), vacuum up to 29.92 InHg (2.3 x 10-3 Torr)
Valve Temperature Range	-4 to 392°F (-20 to 200°C)
Actuator Temperature Range	-13 to 131°F (-25 to 55°C)
Valve Body/Ball	316 SS
Body/Ball Material	316 Stainless Steel
Ball Seat Material	RTFE (reinforced Teflon)
Stem Seal Material	PTFE/ Viton (live loaded and adjustable)
Enclosure	Aluminum alloy, polyester painted, SS fasteners
Enclosure Protection	IP67, NEMA 4, 4X weatherproof
Electrical Connections	Two 1/2" NPT threaded ports. Requires Exp rated connector or pipe (not included)
Output signal	4-20mA output monitoring signal (same type as input signal)
Valve Position Indicator	Dial Indicator
Manual Override	5mm hex drive with protective cover
Motor Protection	Thermal overload
Explosion Proof Approval	UL Class I Div I Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC T5 Gb
Max Fluid Velocity	10 feet per second
