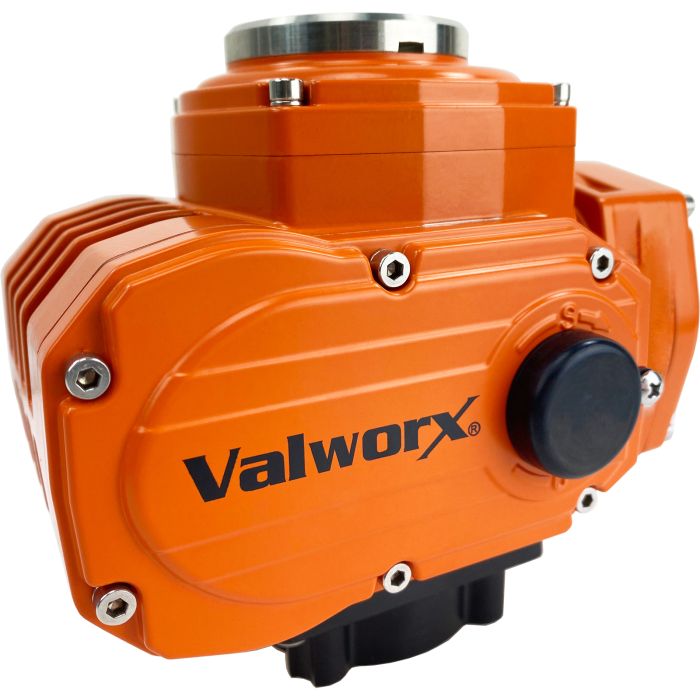

Explosion Proof Actuator 442 in.lbs (50Nm), 110 VAC
SKU
581850
Series
5818
List Price: $1,027.20
Price:
$821.76
- Buy 3 for $739.58 each and save 10%
Explosion Proof Actuator Standard Features
UL Class I Div 1 Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC Gb Explosion Proof Rating Quarter turn operation with mechanical limits Rugged Type 4X weatherproof aluminum alloy enclosure Visual valve position indicator Manual override Heavy duty motor with overload protection Thermostatically controlled anti-condensation heater Two auxiliary limit switches to confirm valve position Self-locking all metal gear drive, no additional brake required Standard ISO5211 multi-flange valve mounting CSA Listed per UL429 and CSA C22.2, CE mark
Valworx 581850 electric actuator uses power-to-open and power-to-close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a rugged all metal gear drive rotates the output drive 90°. The motor is automatically stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the output drive position.
These electric actuators are typically used where flammable gases may be present. Automate quarter turn ball valves, butterfly valves or dampers. Valve mounting using standard ISO5211 multi-flange mounting and double square drive. Unique integral motor/housing design provides higher torque in a very small package.
Actuators are tested to rigorous UL and CSA standards and certified by CSA per above. Two auxiliary dry contact limit switches are provided to confirm open and closed valve position. Thermostatically controlled anti-condensation heater will help protect actuator against damage from condensation.
Wiring connection is via two 1/2" NPT threaded ports using Exp rated connectors or pipe (not included).
Valworx 581850 electric actuator uses power-to-open and power-to-close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a rugged all metal gear drive rotates the output drive 90°. The motor is automatically stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the output drive position.
These electric actuators are typically used where flammable gases may be present. Automate quarter turn ball valves, butterfly valves or dampers. Valve mounting using standard ISO5211 multi-flange mounting and double square drive. Unique integral motor/housing design provides higher torque in a very small package.
Actuators are tested to rigorous UL and CSA standards and certified by CSA per above. Two auxiliary dry contact limit switches are provided to confirm open and closed valve position. Thermostatically controlled anti-condensation heater will help protect actuator against damage from condensation.
Wiring connection is via two 1/2" NPT threaded ports using Exp rated connectors or pipe (not included).
| Anti-Condensation Heater | 4 watts thermostatically controlled |
|---|---|
| Approvals | UL Class I Div I Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC T5 Gb |
| Current Rating | 0.27A (full load amps) |
| Cycle Time | 20 seconds per 90° rotation (no load) |
| Duty Cycle | 70% |
| Electrical Connections | Two 1/2" NPT threaded ports. Requires Exp rated connector or pipe (not included). |
| Enclosure | Aluminum alloy, polyester painted, SS fasteners |
| Enclosure Protection | Type 4X (IP67) weatherproof |
| ISO 5211 Mount | F03, F05, F07 (multi-flange) |
| Manual Override | 5mm hex drive with protective cover |
| Max Torque | 442 in lbs (50Nm) |
| Motor Protection | Thermal overload |
| Output Drive | 14mm double square (female) |
| Temperature Range | -13 to +131 °F (-25 to +55 °C) |
| Type | Explosion Proof On-Off |
| Valve Position Confirmation | 2 x SPST auxiliary limit switches 3A @ 125/250VAC, 30VDC resistive load |
| Voltage | 110 VAC 50/60 Hz |
| Working Rotation | 90° (quarter turn) |
