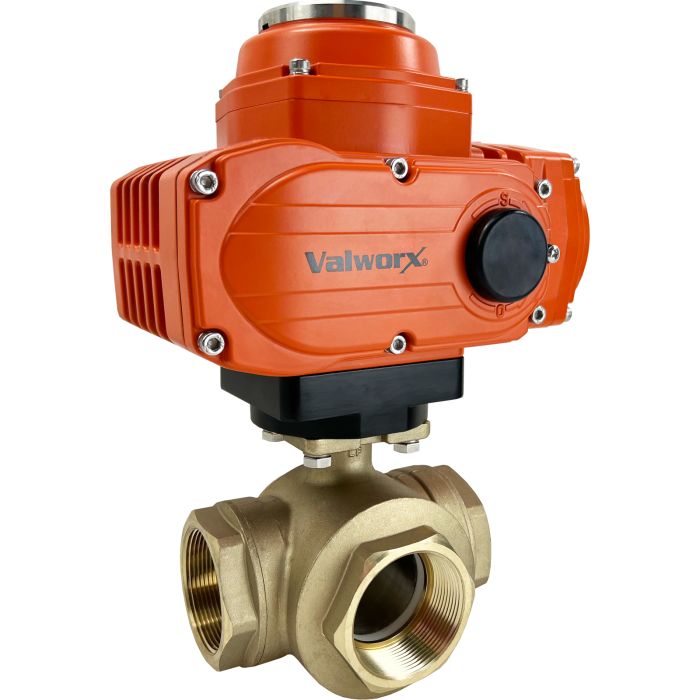

2" Explosion Proof 3-way Brass L-Diverter Valve 110 VAC, EPS Positioner

Description

Valworx 586416 explosion proof 3-way full port lead free ball valves are used to control the flow of water, air, oil, and other media compatible with the materials of construction. These 3-way L-Port valves are used as either diverting or selecting valves. Four ball seat design allows for full pressure at any port. Ideal where lead free and NSF approved construction are required for potable drinking water, or other general industrial applications in hazardous environments. The EPS- Electronic Positioning System provides an accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Any change in the input signal results in a corresponding and proportional change in the position of the ball. The internal microprocessor and closed loop feedback system continuously monitors and maintains accurate valve position. Valve can be set to fail closed, in-place or open with loss of control signal. The valve will remain in the last known position with loss of electric power. There is no flow shutoff position with this type valve.

Valworx does not recommend the use of high temperature brackets with explosion proof actuators.

Actuators certified for UL Class I Div I Groups C & D, and are tested to rigorous UL and CSA standards and certified by CSA.

Ball Valve Standard Features

Full port design

Lead free brass body

400 PSI working pressure (see P/T chart)

Direct mounting valve per ISO5211

Stainless steel ball and stem

Four ball seat design allows for full pressure at any port

Energized PTFE ball seats for extended cycle life and reduced torque

Leak free triple PTFE/Viton stem seal design

Certified per NSF372 and NSF61 for use with potable/drinking water

Electric Actuator Standard Features

Explosion proof rated for UL Class I Div I Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC T5 Gbs

Rugged Type 4X weatherproof aluminum alloy enclosure

Visual valve position indicator

Manual override

Heavy duty motor with overload protection

Self-locking all metal gear drive, no additional brake required

CSA Listed per UL429 and CSA C22.2, CE mark as well as ExP ratings listed above

Options (see Accessories tab)

Specifications

More Information
Actuator Temperature Range	-13 to +131 °F (-25 to +55 °C)
Ball and Stem	316 Stainless Steel
Ball Seats	(4) PTFE (Teflon) energized with FKM (Viton)
Current Rating	0.63A (full load amps)
Cycle Time	30 seconds per 90° rotation (no load)
Duty Cycle	70%
Electrical Connections	Two 1/2" NPT threaded ports. Requires Exp rated connector or pipe (not included)
Enclosure	Aluminum alloy, polyester painted, SS fasteners
Enclosure Rating	Type 4X (IP67) weatherproof
Explosion Proof	UL Class I Div I Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC T5 Gb
Manual Override	5mm hex drive with protective cover
Max Fluid Velocity	10 feet per second
Motor Protection	Thermal overload
Pipe Size	2" NPT female
Port Size	Full Port, orifice 2.00 inches, Cv 82
Pressure (Max)	400 PSI CWP non-shock (see P/T chart), Vacuum service to 29" Hg
Stem Seals	PTFE (Teflon) with dual FKM (Viton) seals
Type	Explosion Proof Electric Actuated 3 Way Ball Valve- Positioner
Valve Body	Lead Free Brass C69300
Valve Position Confirmation	4-20mA output monitoring signal (same type as input signal)
Valve Temperature Range	0 to 344 °F (-18 to 173 °C)
Voltage	110 VAC 50/60 Hz
