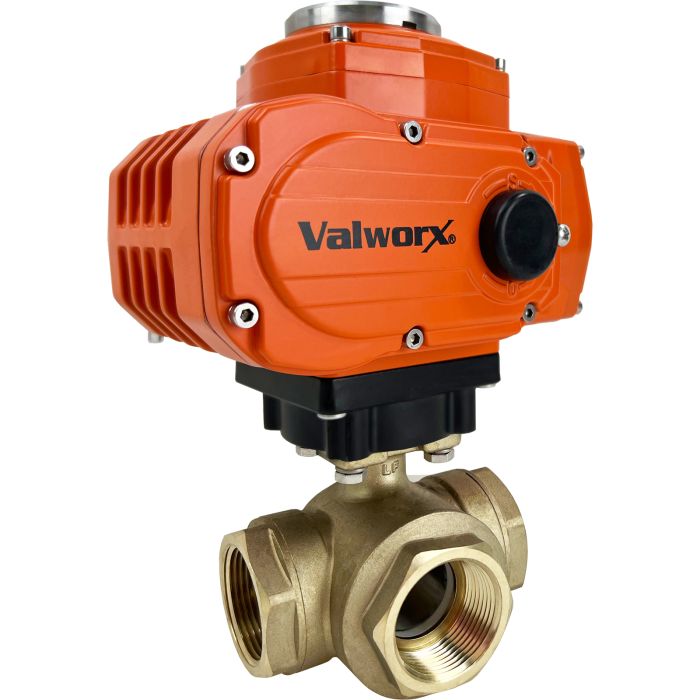

1-1/4" Explosion Proof 3-way Brass T-Diverter Valve 24 VDC, EPS Positioner
Stock #
586710
Series
5867
List Price: $2,109.37
Price: $1,687.50
- Buy 3 for $1,518.75 each
Usually Ships: 4- 6 Weeks
Valworx 586710 explosion proof 3-way full port lead free ball valves are used to control the flow of water, air, oil, and other media compatible with the materials of construction. These 3-way T-Port valves are typically used as diverter, selector or mixing valves. Four ball seat design allows for full pressure at any port. Ideal where lead free and NSF approved construction are required for potable drinking water, or other general industrial applications in hazardous environments. The EPS- Electronic Positioning System provides an accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Any change in the input signal results in a corresponding and proportional change in the position of the ball. The internal microprocessor and closed loop feedback system continuously monitors and maintains accurate valve position. Valve can be set to fail closed, in-place or open with loss of control signal. The valve will remain in the last known position with loss of electric power. There is no flow shutoff position with this type valve.
Valworx does not recommend the use of high temperature brackets with explosion proof actuators.
Actuators certified for UL Class I Div I Groups C & D, and are tested to rigorous UL and CSA standards and certified by CSA.
Ball Valve Standard FeaturesFull port design Lead free brass body 400 PSI working pressure (see P/T chart) Direct mounting valve per ISO5211 Stainless steel ball and stem Four ball seat design allows for full pressure at any port Energized PTFE ball seats for extended cycle life and reduced torque Leak free triple PTFE/Viton stem seal design Certified per NSF372 and NSF61 for use with potable/drinking water
Electric Actuator Standard FeaturesExplosion proof rated for UL Class I Div I Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC T5 Gbs Rugged Type 4X weatherproof aluminum alloy enclosure Visual valve position indicator Manual override Heavy duty motor with overload protection Self-locking all metal gear drive, no additional brake required CSA Listed per UL429 and CSA C22.2, CE mark as well as ExP ratings listed above
Options (see Accessories tab)
Valworx does not recommend the use of high temperature brackets with explosion proof actuators.
Actuators certified for UL Class I Div I Groups C & D, and are tested to rigorous UL and CSA standards and certified by CSA.
Ball Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Type | Explosion Proof Electric Actuated 3 Way Brass Valve- Positioner |
|---|---|
| Actuator Voltage | 24 VDC |
| Current Rating | 1.8A (full load amps) |
| Cycle Time | 20 seconds per 90° rotation |
| Duty Cycle | 70% |
| Pipe Size (in)-Specs | 1-1/4" NPT female |
| Full Port Orifice Size (inches) | 1.22 |
| Cv | 31.0 |
| Pressure Rating | 400 PSI (see P/T chart), vacuum up to 29 InHg |
| Valve Temperature Range | -4 to 344°F (-20 to 173°C) |
| Actuator Temperature Range | -13 to 131°F (-25 to 55°C) |
| Valve Body-Specs | Lead Free Brass C69300 |
| Ball/Stem Material | 316 Stainless Steel |
| Ball Seat Material | PTFE/ Viton |
| Stem Seal Material | PTFE/ Viton |
| Enclosure | Aluminum alloy, polyester painted, SS fasteners |
| Enclosure Protection | IP67, NEMA 4, 4X weatherproof |
| Electrical Connections | Two 1/2" NPT threaded ports. Requires Exp rated connector or pipe (not included) |
| Input Control Signal | 4-20mA |
| Output signal | 4-20mA output monitoring signal (same type as input signal) |
| Valve Position Indicator | Dial Indicator |
| Manual Override | 5mm hex drive with protective cover |
| Motor Protection | Thermal overload |
| Explosion Proof Approval | UL Class I Div I Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC T5 Gb |
| Max Fluid Velocity | 10 feet per second |
