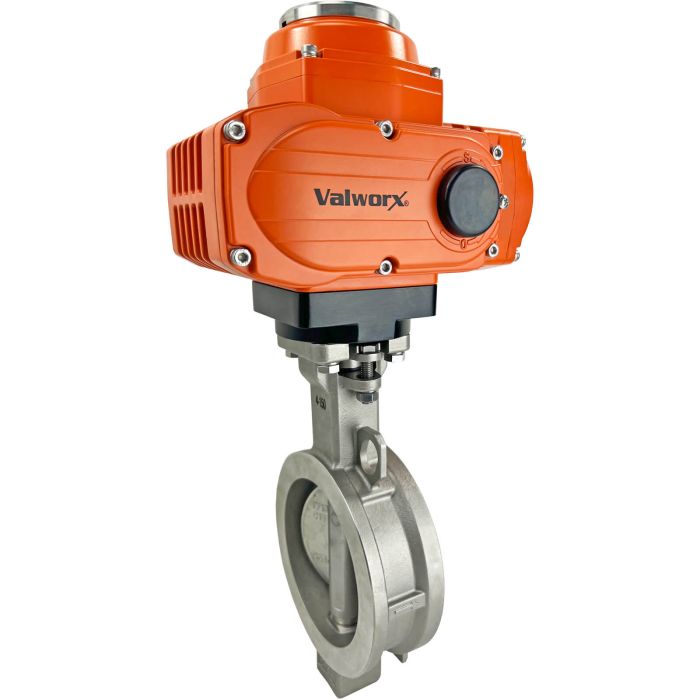

4" Explosion Proof High Performance Butterfly Valve 24 VDC
SKU
589304A
Series
5893
List Price: $2,424.46
Price:
$1,939.57
- Buy 3 for $1,745.61 each and save 10%
Valworx 589304A explosion proof high performance butterfly valve is used for on-off control of water, air, oil, and other media compatible with the materials of construction. Standard unit is power-to-open and power to close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a self-locking gear drive rotates the disc. The motor is stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuator certified for UL Class I Div I Groups C & D, and are tested to rigorous UL and CSA standards and certified by CSA.
High Performance Butterfly Valve Standard Features316 stainless steel (CF8M) body Double offset design greatly reduces seal wear. 17-4PH stainless steel, single piece shaft RPTFE valve seats and stem seals Heavy duty, single piece cast and machined disc with integral mounting sleeve Bi-directional seal design ensures increased sealing force in either flow direction Integral ISO 5211 mounting pad eliminates additional mounting brackets
Electric Actuator Standard FeaturesExplosion proof rated for UL Class I Div I Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC T5 Gbs Rugged Type 4X weatherproof aluminum alloy enclosure Visual valve position indicator Manual override Heavy duty motor with overload protection Two auxiliary limit switches to confirm valve positions Self-locking all metal gear drive, no additional brake required CSA Listed per UL429 and CSA C22.2, CE mark as well as ExP ratings listed above
Options (see Accessories tab)
The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuator certified for UL Class I Div I Groups C & D, and are tested to rigorous UL and CSA standards and certified by CSA.
High Performance Butterfly Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
Explosion Proof NPT Plug
-
1/2" NPT Plug for 5818 Series Explosion Proof ActuatorsStock #: 581891Usually Ships: Same DayPrice: $24.55
-
-
Explosion Proof Actuator 1770 in.lbs (200Nm), 24 VDCStock #: 581871Usually Ships: Same DayPrice: $1,390.14
