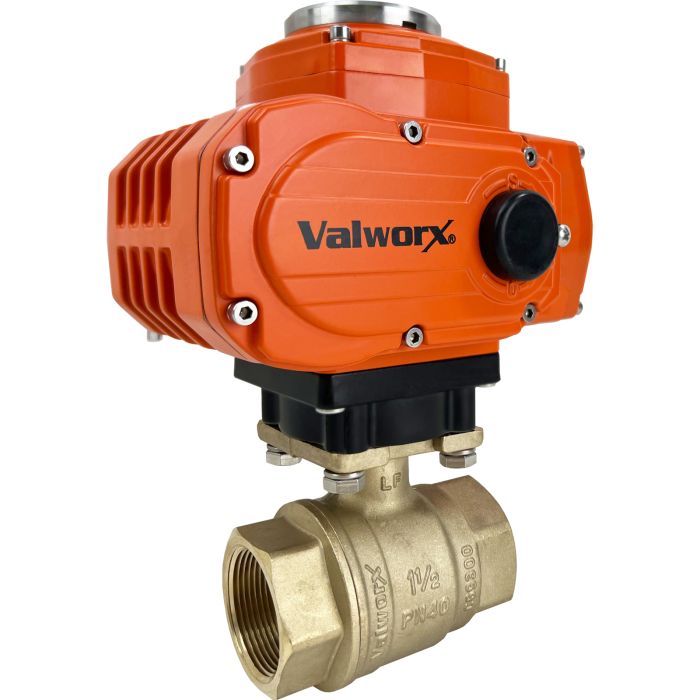

1-1/2" Explosion Proof Brass Ball Valve 24 VDC, EPS Positioner

Description

Valworx 583312 explosion proof lead free brass ball valve is used for positioning control of water, air, oil, and other media compatible with the materials of construction. Ideal where lead free and NSF construction are required for potable drinking water as well as other industrial applications. The EPS- Electronic Positioning System provides an accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Any change in the input signal results in a corresponding and proportional change in the position of the ball. The internal microprocessor and closed loop feedback system continuously monitors and maintains accurate valve position. Valve can be set to fail closed, in-place or open with loss of control signal. The valve will remain in the last known position with loss of electric power.

The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Valworx does not recommend the use of high temperature brackets with explosion proof actuators. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators certified for UL Class I Div I Groups C & D, and are tested to rigorous UL and CSA standards and certified by CSA.

Ball Valve Standard Features

Lead free brass body

600 PSI working pressure (see P/T chart)

Direct mount ball valve per ISO5211

Full port design for unrestricted flow

316 Stainless steel ball and stem

Blow out proof stem

Energized PTFE ball seats for lower torque and extended cycle life

Leak free triple PTFE/Viton stem seal packing

Certified per NSF372 and NSF 61 for potable/drinking water

Electric Actuator Standard Features

Explosion proof rated for UL Class I Div I Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC T5 Gbs

Rugged Type 4X weatherproof aluminum alloy enclosure

Visual valve position indicator

Manual override

Heavy duty motor with overload protection

Self-locking all metal gear drive, no additional brake required

CSA Listed per UL429 and CSA C22.2, CE mark as well as ExP ratings listed above

Options (see Accessories tab)

Specifications

More Information
Actuator Temperature Range	-13 to +131 °F (-25 to +55 °C)
Ball Seats	PTFE (Teflon) with dual FKM (Viton) seals
Ball Stem	316 Stainless Steel
Current Rating	1.28A (full load amps)
Cycle Time	20 seconds per 90° rotation (no load)
Duty Cycle	70%
Electrical Connections	Two 1/2" NPT threaded ports. Requires Exp rated connector or pipe (not included)
Enclosure	Aluminum alloy, polyester coating, SS fasteners
Enclosure Rating	Type 4X (IP67) weatherproof
Explosion Proof	UL Class I Div I Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC T5 Gb
Manual Override	5mm hex drive with protective cover
Max Fluid Velocity	10 feet per second
Motor Protection	Thermal overload
Pipe Size	1/4" NPT female
Port Size	Full Port, Orifice 1.50 inches, Cv 125
Pressure (Max)	600 PSI CWP non-shock (see P/T chart), Vacuum service to 29"Hg, 25 PSI steam with kit
Stem Seals	PTFE (Teflon) energized with FKM (Viton)
Type	2-way Explosion Proof Positioner
Valve Body	Lead Free Brass C69300
Valve Position Confirmation	4-20mA output monitoring signal (same type as input signal)
Valve Temperature Range	0 to 366 °F (-18 to +185 °C)
Voltage	24 VDC
