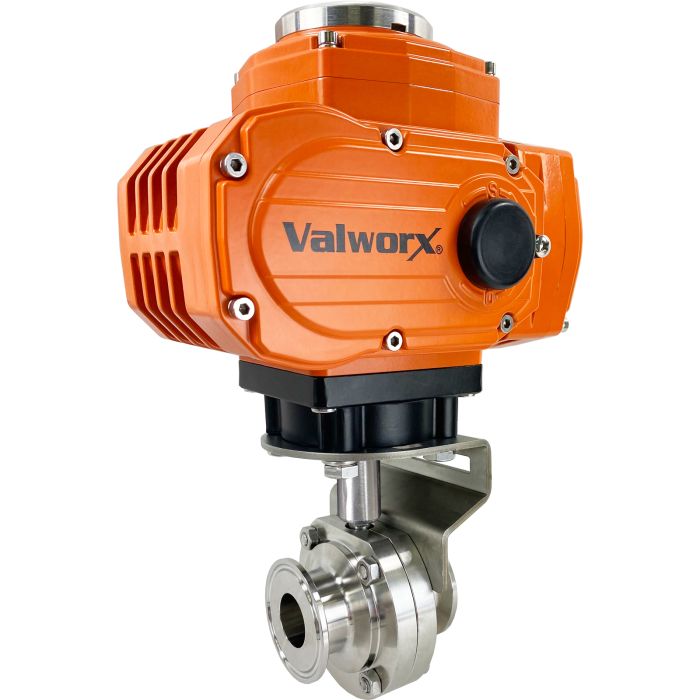

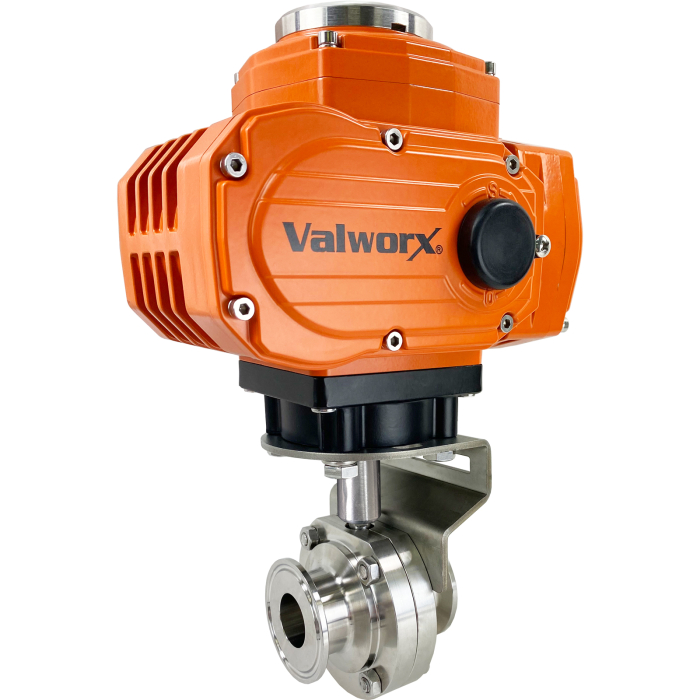

1" Explosion Proof Sanitary Butterfly Valve 110 VAC EPS-Positioner, Tri-Clamp

Valworx 580202 explosion proof sanitary butterfly valves are typically used for food, beverage, pharmaceutical, personal care and pet care applications where sanitary construction is required, as well as for utility, process and hazardous environment applications where quick clamp applications are needed. Standard unit is power-to-open and power to close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and via a self-locking gear drive rotates the disc. The motor is stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.

The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators certified for UL Class I Div I Groups C & D, and are tested to rigorous UL and CSA standards and certified by CSA.

Butterfly Valve Standard Features

Forged valve bodies are machined and chamfered in a single set-up for a precise fit.

Single piece disc/stem with disc polished to mirror finish

32 Ra finish on all wetted surfaces

EPDM seat materials meets FDA CFR 177.2600

All materials comply with FDA and USDA requirements

316L stainless steel valve body and disc for superior corrosion resistance

Standard Tri-Clamp ends for sanitary connections

All valves are tested per API 598

Suitable for vacuum up to 29.5inHg

Electric Actuator Standard Features

Explosion proof rated for UL Class I Div I Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC T5 Gbs

EPS-Electronic Positioning System with 4-20mA input

Rugged Type 4X weatherproof aluminum alloy enclosure

Visual valve position indicator

Manual override

Heavy duty motor with overload protection

Analog output signal to confirm valve position

Self-locking all metal gear drive, no additional brake required

CSA Listed per UL429 and CSA C22.2, CE mark as well as ExP ratings listed above

Options (see Accessories tab)
