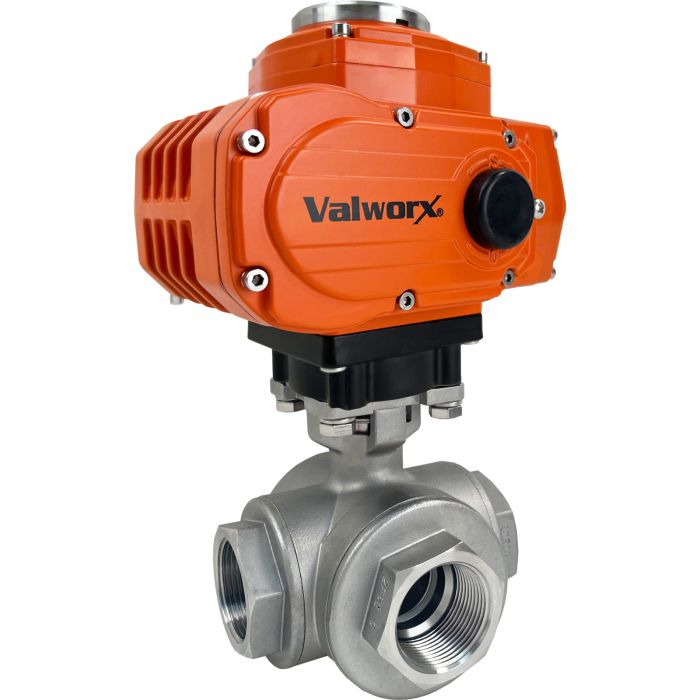

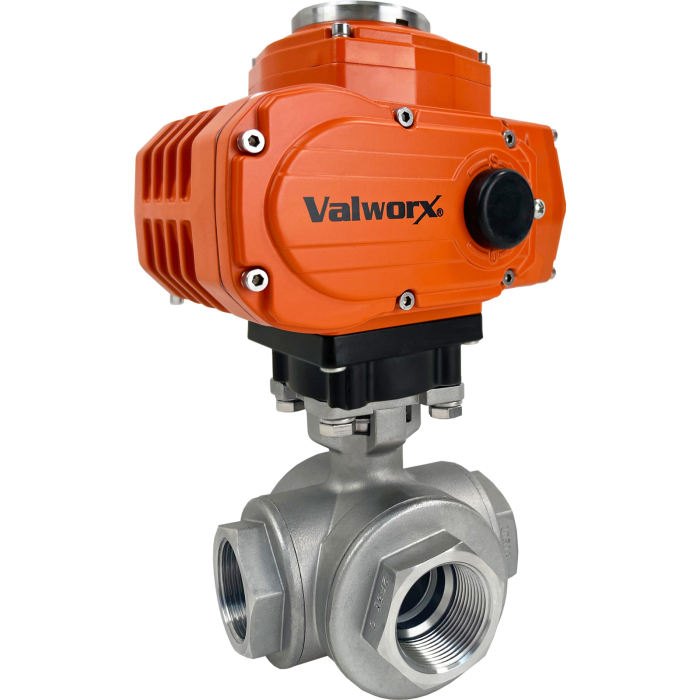

1-1/4" Explosion Proof 3-Way Stainless T-Diverter Valve, 24 VDC, EPS Positioner

Stock #

584910

Series

5849

List Price: $2,235.38

Price: $1,788.30

Buy 3 for $1,609.47 each

Usually Ships: 4- 6 Weeks

Description

Valworx 584910 Explosion Proof 3-way Full Port stainless steel ball valve is used to control the flow of water, air, oil, and other media compatible with the materials of construction. These valves have a T-port flow path which can be used as a diverter, selector or mixing valve. There is no flow shutoff position with this type valve. Actuator uses power-to-open (position 2) and power-to-close (position 1), stays in last known position with loss of power. The EPS- Electronic Positioning System provides an accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Any change in the control input signal results in a corresponding and proportional change in the position of the ball. The internal microprocessor and closed loop feedback system continuously monitors and maintains accurate valve position. The valve will remain in the last known position with loss of electric power.

The positioning module is self-calibrating and fully potted to help protect the electronics against vibration and moisture. Valve position can be monitored with onboard analog output signal.

The ball valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Valworx does not recommend the use of high temperature brackets with explosion proof actuators. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators certified for UL Class I Div I Groups C & D, and are tested to rigorous UL and CSA standards and certified by CSA.

Ball Valve Standard Features

1000 PSI working pressure (see P/T chart)

Direct mounting valve per ISO5211

Full port design

316 stainless steel body, ball and stem

Four ball seat design allows for Full Pressure at any port

RTFE ball seats for extended cycle life

Triple PTFE/Viton stem seal design, live loaded and adjustable

Electric Actuator Standard Features

Explosion proof rated for UL Class I Div I Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC T5 Gbs

Rugged Type 4X weatherproof aluminum alloy enclosure

Visual valve position indicator

Manual override

Heavy duty motor with overload protection

Analog output signal to confirm valve position

Self-locking all metal gear drive, no additional brake required

CSA Listed per UL429 and CSA C22.2, CE mark as well as ExP ratings listed above

Options (see Accessories tab)

Specifications

More Information
Type	Explosion Proof Electric Actuated 3 Way Diverter Valve- Positioner
Actuator Voltage	24 VDC
Current Rating	1.8A (full load amps)
Cycle Time	20 seconds per 90° rotation
Duty Cycle	70%
Pipe Size (in)-Specs	1-1/4" NPT female
Pressure Rating	1000 PSI (see P/T chart), vacuum up to 29.92 InHg (2.3 x 10-3 Torr)
Valve Temperature Range	-4 to 392°F (-20 to 200°C)
Actuator Temperature Range	-13 to 131°F (-25 to 55°C)
Valve Body/Ball	316 SS
Body/Ball Material	316 Stainless Steel
Ball Seat Material	RTFE (reinforced Teflon)
Stem Seal Material	PTFE/ Viton (live loaded and adjustable)
Enclosure	Aluminum alloy, polyester painted, SS fasteners
Enclosure Protection	IP67, NEMA 4, 4X weatherproof
Electrical Connections	Two 1/2" NPT threaded ports. Requires Exp rated connector or pipe (not included)
Output signal	4-20mA output monitoring signal (same type as input signal)
Valve Position Indicator	Dial Indicator
Manual Override	5mm hex drive with protective cover
Motor Protection	Thermal overload
Explosion Proof Approval	UL Class I Div I Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC T5 Gb
Max Fluid Velocity	10 feet per second
