2" Explosion Proof Stainless Ball Valve 110 VAC- Positioner

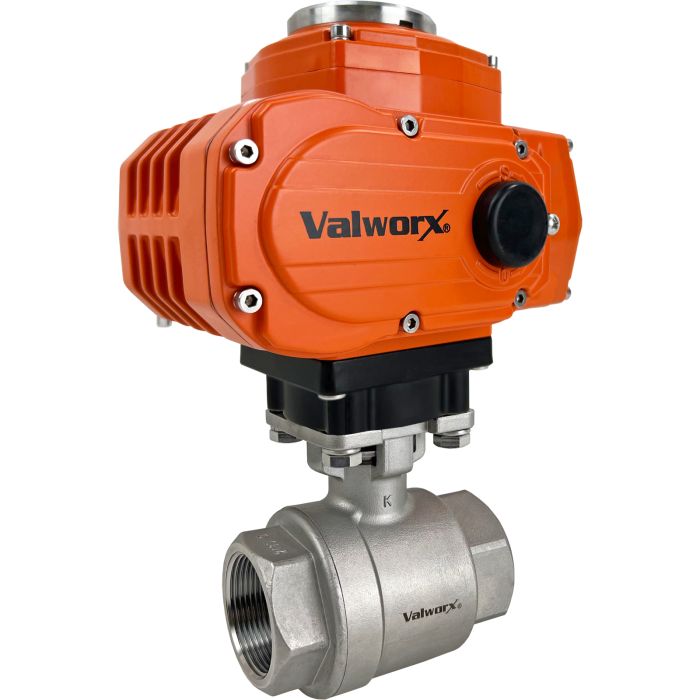

Valworx 585416A explosion proof 2-piece stainless steel ball valve is used for positioning control of water, air, oil, and other media compatible with the materials of construction. Positioning System provides an accurate valve positioning function whereby the movement of the actuator is controlled by a 4-20mA input control signal. Any change in the control input signal results in a corresponding and proportional change in the position of the ball. The internal microprocessor and closed loop feedback system continuously monitors and maintains accurate valve position. The valve will remain in the last known position with loss of electric power.

The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Valworx does not recommend the use of high temperature brackets with explosion proof actuators. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators certified for UL Class I Div I Groups C & D, and are tested to rigorous UL and CSA standards and certified by CSA.

Ball Valve Standard Features

1000 PSI working pressure (see P/T chart)

Direct mounting valve per ISO5211

Full port for unrestricted flow

316 stainless steel body, ball and stem

Blow out proof stem

RTFE ball seats extend cycle life

Triple PTFE/Viton stem seal design, live loaded

Electric Actuator Standard Features

Explosion proof rated for UL Class I Div I Groups C & D, Ex db IIC T5 Gb Class 1 Zone 1, AEx db IIC T5 Gbs

Rugged Type 4X weatherproof aluminum alloy enclosure

Visual valve position indicator

Manual override

Heavy duty motor with overload protection

Self-locking all metal gear drive, no additional brake required

CSA Listed per UL429 and CSA C22.2, CE mark as well as ExP ratings listed above

Options (see Accessories tab)
