4" High Performance Butterfly Valve Lug
SKU
547004A
Series
5470
List Price: $1,399.64
Price:
$1,119.71
- Buy 3 for $1,007.74 each and save 10%

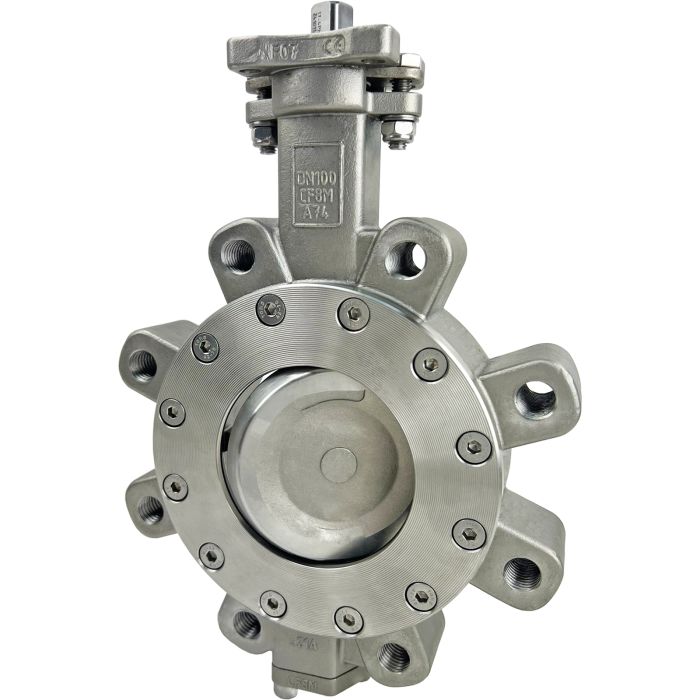

Valworx 547004A high performance stainless steel butterfly valve for on-off control of air, oil and other media compatible with the materials of construction. Lug style valve sandwich mounts between customer supplied ANSI /ASME Class 150 and other international standard flanges and gaskets. High quality, passivated 316 stainless steel (CF8M) body for excellent corrosion resistance. Bi-directional seal design ensures increased sealing force in either flow direction. Reinforced Teflon (RPTFE) disc seat for expanded temperature range. Bolted faceplate ensures proper seal alignment and facilitates maintenance. Belleville washers for consistent, self-adjusting stem seal pressure. Double offset design greatly reduces seal wear. Integral ISO5211 top mounting allows for easy air actuator, electric actuator or manual handle installation without external brackets. This valve is a bare stem direct mount design. Optional hand levers and gear operators are available separately. Suitable for end of line applications. Full vacuum rating.
| Actuator Mount | ISO5211, F07, 14mm square stem |
|---|---|
| Actuator Seals | NBR |
| Air Connections | 1/4" NPT (plus NAMUR pad for solenoid valve) |
| Air Pilot Pressure | 80-120 PSI |
| Cycle Time | Approx. 1 second per 90° rotation |
| Disc | Single piece, machined 316 stainless steel |
| Disc Seat/Liner | RPTFE |
| Flow Capacity | Cv 375 (Cv = number of GPM of 60 °F water at 1 psi pressure drop) |
| Pipe Size | 4 inch lug design |
| Pressure Rating | 285 PSI (19 Bar), Full Vacuum |
| Stem | 17-4PH |
| Stem Packing | RPTFE |
| Suitable Flanges | ANSI /ASME B16.5 Class150, MSSSP44 Class 150 |
| Temperature Range | -40 to 450 °F (-40 to 230 °C) |
| Type | High Performance Butterfly Valve |
| Valve Body | 316 Stainless Steel |
