High Performance Gear Operator Handwheel, 17mm Drive
Stock #
565932A
Series
5659
List Price: $890.95
Price: $712.76
- Buy 3 for $641.48 each
Usually Ships: Same Day

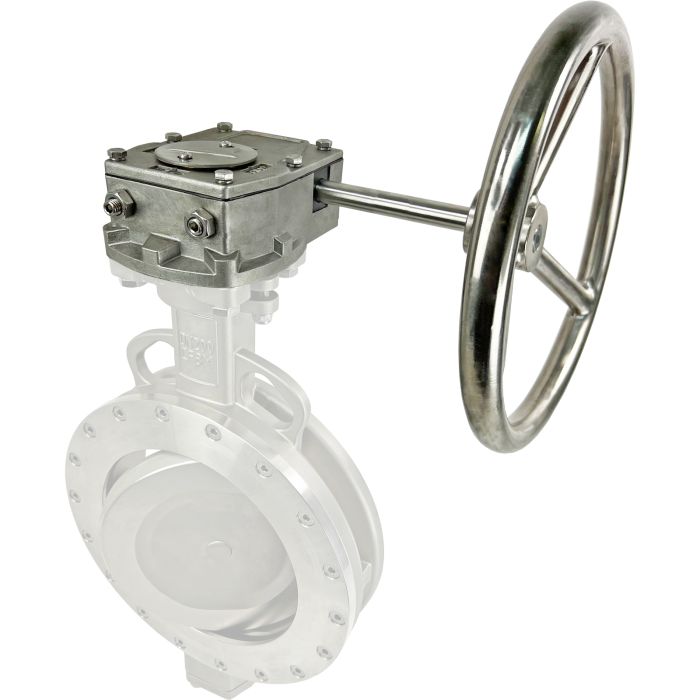

Valworx 565932A manual hand wheel gear operator for high temperature applications. 316 stainless steel body, shaft and handwheel, aluminum-bronze gear drive and Viton seals offer excellent corrosion resistance. Rugged IP65 weatherproof enclosure with visual valve position indicator. Adjustable travel stops are factory set. Standard bolts and nuts are made of SS304. Fits standard ISO5211 F07/F10 mounting with 17mm square stem.
| Type | High Performance Gear Operator |
|---|---|
| Temperature Range | 5 to 320°F (-15 to 160°C) |
| Stem Size | 17mm |
| Disc Seat/Liner | EPDM |
| Shaft | 316 Stainless Steel |
| ISO 5211 Mount | F10/F12 |
| Gear Ratio | 42: 1 |
| Gearing | Aluminum-Bronze |
| Handwheel | 316 Stainless Steel |
| Housing | 316 Stainless Steel |
| Output Torque | 500Nm |
| Seals | Viton |
