High Performance Gear Operator Handwheel, 14 mm Drive
Stock #
565935
Series
5659
List Price: $282.50
Price: $226.00
- Buy 3 for $203.40 each
Usually Ships: 9- 16 Weeks

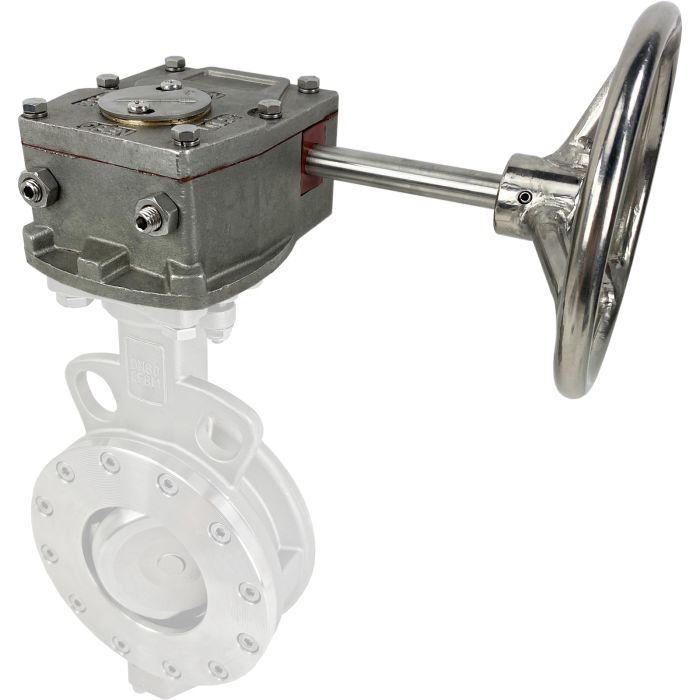

Valworx 565935 manual hand wheel gear operator for high temperature applications. 316 stainless steel body, shaft and handwheel, aluminum-bronze gear drive and Viton seals offer excellent corrosion resistance. Rugged IP65 weatherproof enclosure with visual valve position indicator. Adjustable travel stops are factory set. Standard bolts and nuts are made of SS304. Fits standard ISO5211 F05/F07 mounting with 14mm square stem.
| Type | High Performance Gear Operator |
|---|---|
| Temperature Range | 5 to 320°F (-15 to 160°C) |
| Stem Size | 14mm |
| Disc Seat/Liner | EPDM |
| Shaft | 316 Stainless Steel |
| ISO 5211 Mount | F05/F07 |
| Gear Ratio | 40: 1 |
| Gearing | Aluminum-Bronze |
| Handwheel | 316 Stainless Steel |
| Housing | 316 Stainless Steel |
| Output Torque | 200Nm |
| Seals | Viton |
