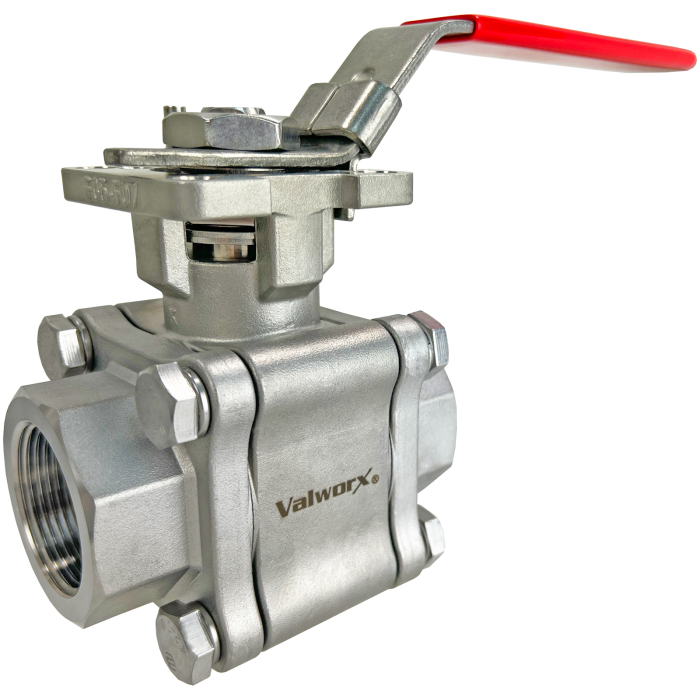

1-1/4" High Pressure Stainless Ball Valve - Direct Mount

Valworx 551610A stainless steel high pressure ball valves are designed for use with water, air, oil, and other media compatible with the materials of construction. High pressure construction rated for 2000 PSI. Fire safe certified per API 607. Unique three piece investment cast bolted body design offers the advantage of a swing out body for easy inline maintenance. Removing handle allows for easy mounting of electric or pneumatic actuators with the industry standard ISO5211 direct mounting pad. This ensures precision shaft alignment and eliminates the need for additional brackets and couplings. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations. All valves are tested per API 598.

Not suitable for potable water, oxygen or high purity fluid applications.

Full Port for Unrestricted Flow

316 Stainless Steel Body, Ball and Stem

Blow Out Proof Stem

Anti-static design

RTFE Ball Seats Extend Cycle Life and Reduce Torque

Braided graphite stem seal packing for fire safe construction per API 607

Latch Locking Handle (Padlockable)

Actuator Ready ISO5211 Direct Mounting Pad
