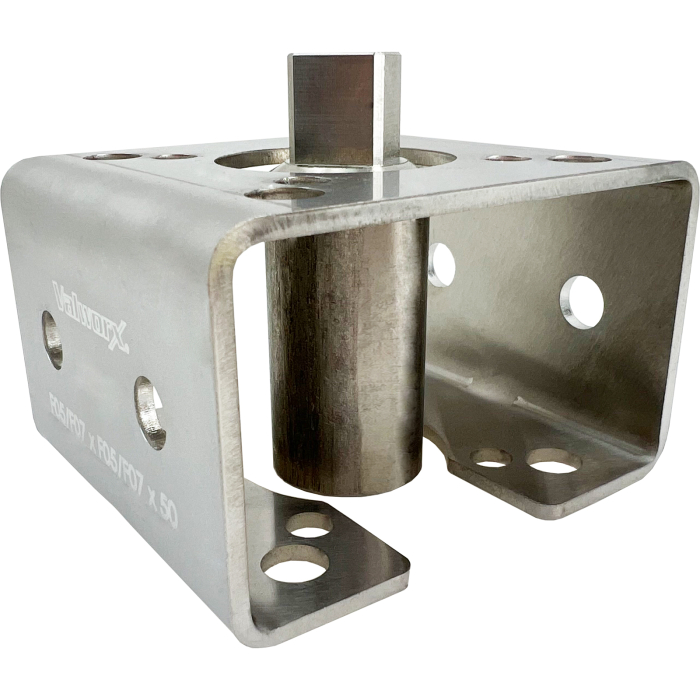

High Temp/Wall Mounting Kit F05/07-17x17mm

High temperature valve mounting kits are used to increase the allowable media operating temperature of an actuated valve assembly. Installing this kit between a valve and actuator will provide additional air cooling to the actuator. Temperature ratings of the valve and actuator should be taken into consideration when using a high temperature mounting kit. High quality laser cut bracket and precision machined drive coupler are made of stainless steel for maximum corrosion resistance. The valve and actuator mounting pattern conforms to international standard ISO5211/ DIN3337.

In addition, these mounting kits can be used to mount an actuated valve assembly to a wall or panel. Two sets of holes are provided in the side of the bracket allowing for easy mounting to customer supplied channel, angle iron or other custom brackets.

The high temp/wall mounting kit is pre-installed at no additional cost when ordered with a Valworx actuated valve assembly. Fasteners are not included when ordered as a loose item.
