PVC Valve/ Actuator Mounting Adapter 8", F10
Stock #
551249
Series
5512
List Price: $93.43
Price: $74.74
- Buy 10 for $67.27 each
Usually Ships: Same Day

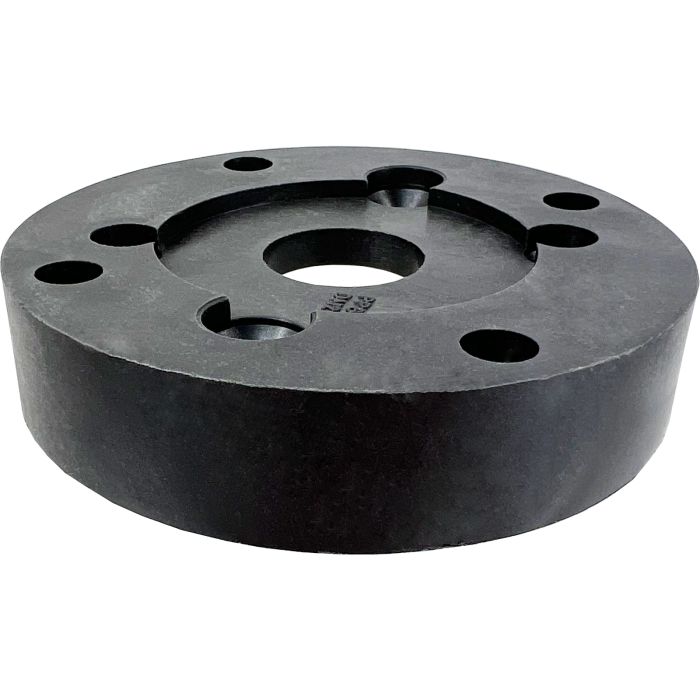

Mounting kit 551249 is used to connect a Valworx 5402 series 8" PVC butterfly valve to an electric or pneumatic actuator. The actuator mounting interface conforms to the international standard ISO5211. This mounting bracket is made of corrosion resistant PVC. The PVC valve mounting adapter is pre-installed using stainless steel mounting hardware at no additional cost when ordered as a Valworx actuated valve assembly. Fasteners are not included when ordered individually.
| Type | PVC Butterfly Valve/Actuator Mounting Adapter |
|---|---|
| Disc Seat/Liner | EPDM |
| ISO 5211 Mounting, Actuator Side | F10 |
| Mounting Bracket | PVC |
| Mounting Hardware | Stainless Steel |
| PVC Valve Size | 8 inch |
| Valve Series | Use this kit with 5402 series butterfly valves |
Please email sales@valworx.com to request the specific files you need. Include the stock number of the valve and any accessories with your request.
