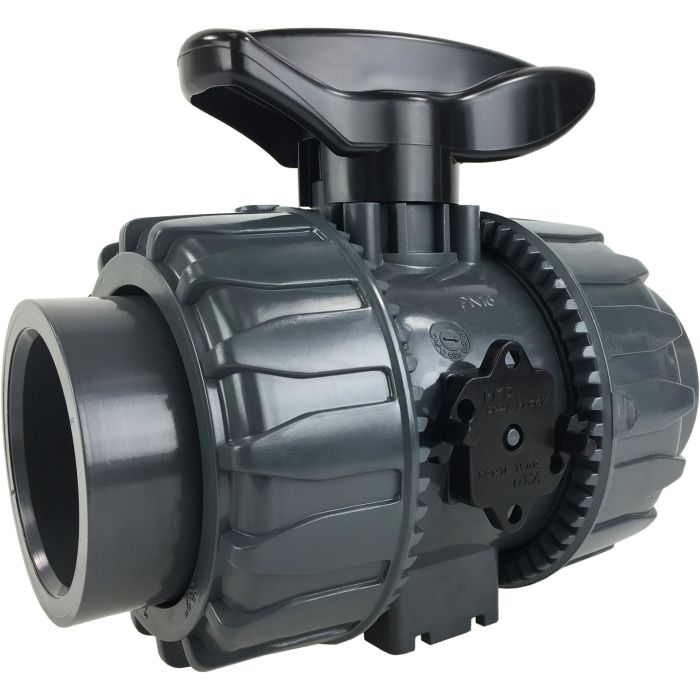

1-1/2" PVC Ball Valve - Viton/Teflon Seals
SKU
551070
Series
5510
List Price: $173.07
Price:
$138.46
- Buy 3 for $124.61 each and save 10%
Valworx 551070 True Union PVC ball valves are typically used for on-off control of liquid media compatible with Viton and the other materials of construction. Turning the valve one quarter turn rotates the ball from closed to the full open position. Energized PTFE (Teflon) ball seats are used to lower operating torque and extend the cycle life. Dual stem seals and adjustable ball seat carrier contribute to a leak free design. Machined ball and stem connection after molding provides a precision fit. Union nut locking device prevents back-off due to vibration or thermal cycling. These PVC valves are NSF certified safe for use with potable/drinking water. Valves are actuator ready with optional ISO5211 mounting kit.
Pressure rated 232 PSI (16 Bar) Full Port for unrestricted flow True Union with Bi-directional flow Energized PTFE ball seats for lower torque and extended life Leak free dual stem seal design Union nut locking device prevents back-off Micro-adjustable ball seat carrier NSF certified for use with potable/drinking water Includes IPS glue sockets and NPT end connectors
| Ball | PVC |
|---|---|
| Ball Seats | PTFE (Teflon) energized with FKM |
| Pipe Size | 1-1/2 inch (both NPT and socket end connectors included) |
| Port Size | Full Port, Cv 123 |
| Pressure (Max) | 232 PSI at 73 °F liquid only, no air or gas (see P/T chart) |
| Stem Seals | (2) FKM (Viton) |
| Temperature Range | 40 to 140 °F (see P/T chart) |
| Valve Body | PVC (gray) |
-
-
-
-
