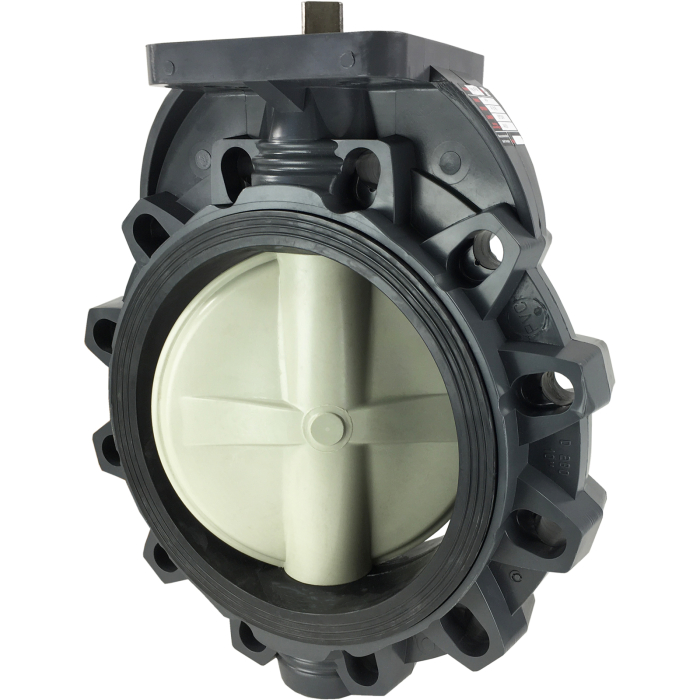

10" PVC Butterfly Valve - EPDM/Bare Stem
SKU
540212
Series
5402
List Price: $1,873.87
Price:
$1,499.10
- Buy 3 for $1,349.19 each and save 10%
Valworx 540212 PVC butterfly valves are used for on-off control of water and other compatible media. Ideal for industrial apps and where NSF certified construction is required for potable/drinking water. Typical applications might include potable water, general services, industrial, process, corrosive environments, commercial plumbing, food processing and irrigation. For manual operation, combine with a gear operator (see accessories tab).
PVC butterfly valves should never be used for compressed gas applications.
Industrial grade PVC butterfly valve Pressure rated 150 PSI at 73°F Polypropylene (PP) disc ANSI 150 wafer-style flange connection 316 stainless steel shaft EPDM primary liner Series 5402 NSF/ANSI/CAN 60 and NSF/ANSI 372 certified valve for potable drinking water
PVC butterfly valves should never be used for compressed gas applications.
| Disc | Polyproplene (PP) |
|---|---|
| Disc Size | 10, Cv 3724 |
| ISO 5211 Mount | F10-F12-F14 |
| Pressure (Max) | 150 PSI at 73 °F liquid only, no air or gas (see P/T chart) |
| Primary Liner | EPDM |
| Stem | 316 Stainless Steel |
| Stem Size | 27mm |
| Temperature Range | 40 to 140 °F (see P/T chart) |
| Type | Bare Stem |
| Valve Body | PVC |
