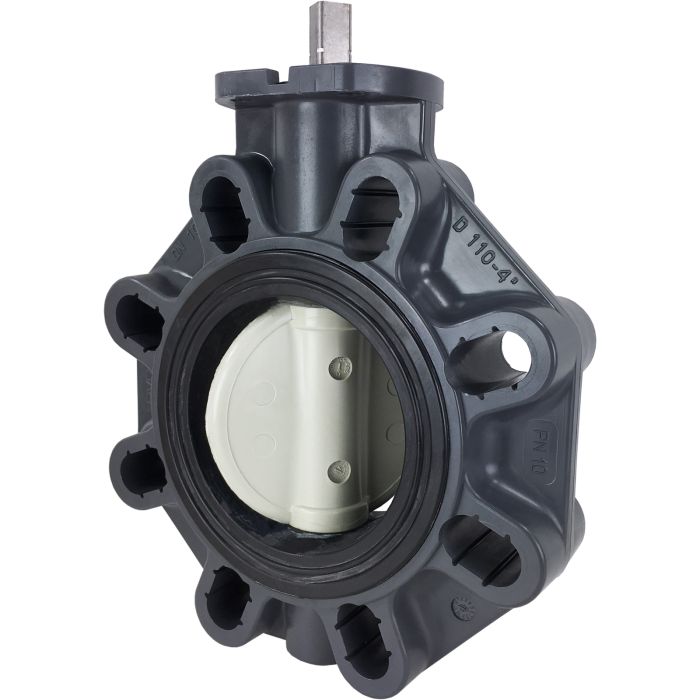

4" PVC Butterfly Valve - EPDM/Bare Stem
Stock #
540206
Series
5402
List Price: $536.20
Price: $428.96
- Buy 3 for $386.06 each
Usually Ships: Same Day
Valworx 540206 PVC butterfly valves are used for on-off control of water and other compatible media. Ideal for industrial apps and where NSF certified construction is required for potable/drinking water. Typical applications might include potable water, general services, industrial, process, corrosive environments, commercial plumbing, food processing and irrigation. For manual operation, combine with a hand lever or gear operator (see accessories tab).
PVC butterfly valves should never be used for compressed gas applications.
Industrial grade PVC butterfly valve Pressure rated 150 PSI at 73°F Polypropylene (PP) disc ANSI 150 wafer-style flange connection 316 stainless steel shaft EPDM primary liner Series 5402 NSF/ANSI/CAN 60 and NSF/ANSI 372 certified valve for potable drinking water
PVC butterfly valves should never be used for compressed gas applications.
| Type | PVC Butterfly Valve |
|---|---|
| Pipe Size (in)-Specs | 4" (DN100) |
| Disc Size (inches) | 3.94 |
| Suitable Flanges | ANSI B16.5 |
| Cv | 413 |
| Pressure Rating | 150 PSI |
| Temperature Range | 32 to 140°F (0 to 60°C) |
| Valve Body-Specs | PVC |
| Disc | Polypropylene (PP) |
| Stem | 316 Stainless Steel |
| ISO 5211 Mount | F07, 14mm |
