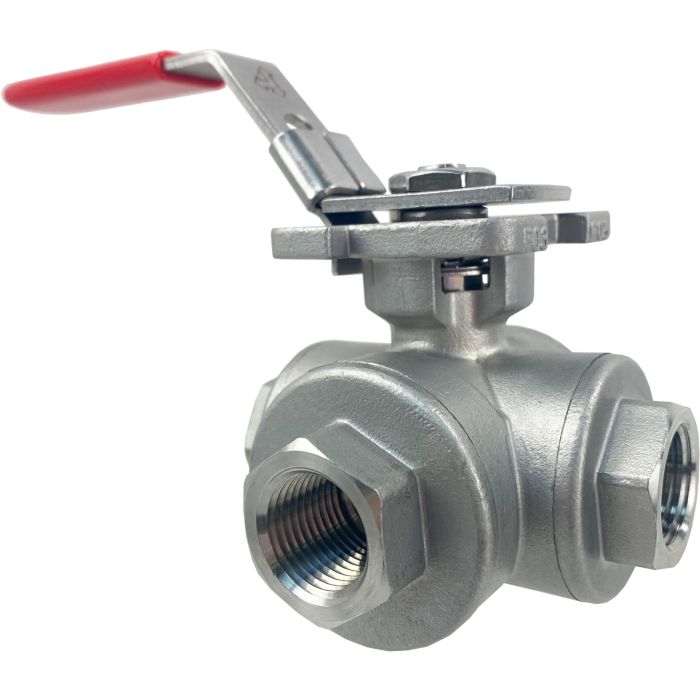

1/2" Stainless 3-Way Ball Valve, T-Port, Direct Mount
SKU
552904C
Series
5529
List Price: $217.99
Price:
$174.39
- Buy 3 for $156.95 each and save 10%
Valworx 552904C stainless steel full port three way ball valves are designed for use with water, air, oil, and other media compatible with the materials of construction. Valves can be set-up in any one of four different flow patterns (T1-T4) in the field by simply moving the valve stem and handle (factory setup T2 flow pattern). These valves require low operating torque and feature a quarter turn latch-locking handle. Removing handle allows for easy mounting of electric or pneumatic actuators with the industry standard ISO5211 direct mounting pad. This insures precision shaft alignment and eliminates the need for additional brackets and couplings. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations. All valves are tested per API 598.
Full Port for Unrestricted Flow 316 Stainless Steel Body, Ball and Stem Four Seats Design allows for Full Pressure at Any Port RTFE Ball Seats Extend Cycle Life and Reduce Torque Triple PTFE/Viton Stem Seal Design, Live Loaded Latch Locking Handle (padlockable) Actuator Ready ISO5211 Direct Mounting Pad
| Ball Seats | Four RTFE (reinforced Teflon) |
|---|---|
| Body/Ball | 316 stainless steel (ASTM A351 CF8M) |
| Handle | 304 stainless steel with vinyl grip |
| ISO 5211 Mount | F03/F04, 9mm square stem |
| Max Fluid Velocity | 10 feet per second |
| Pipe Size | 1/2" NPT female |
| Port Size | Full port, 0.63 inch orifice, Cv 8.9 |
| Pressure (Max) | 1000 PSI CWP (see P/T chart ), Vacuum 29inHg, Steam 100 PSI |
| Stem Seals | PTFE/ Viton (live loaded and adjustable) |
| Stem | 316 Stainless Steel |
| Temperature Range | -4 to 392 °F (-20 to 200 °C) |
| Type | Manual 3 Way Diverter Valve |
