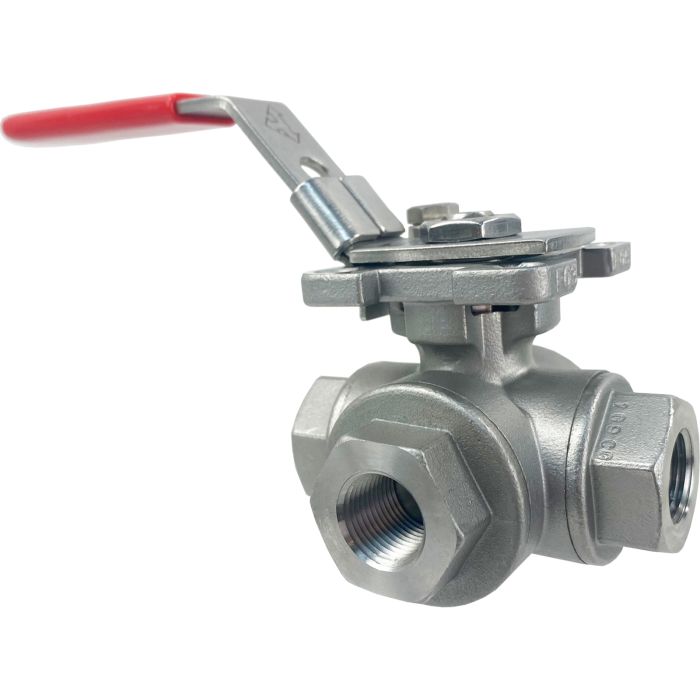

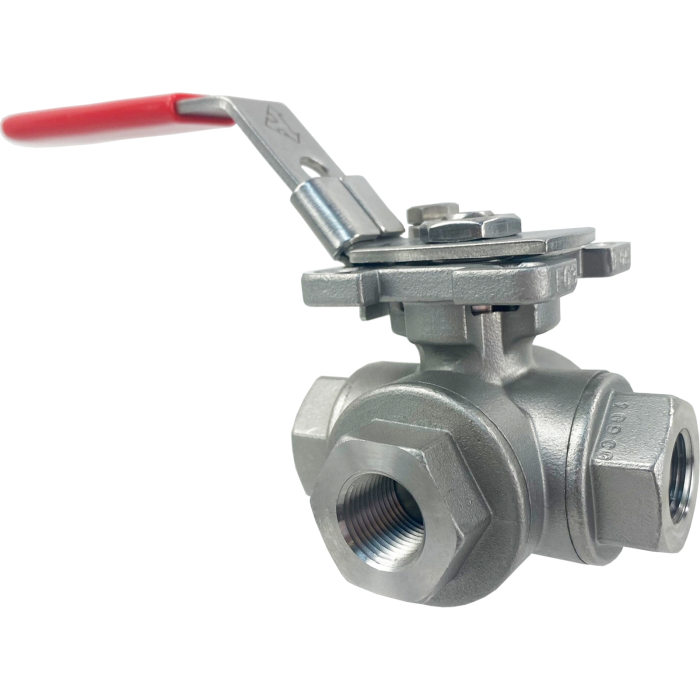

3/8" Stainless 3-Way Ball Valve, T-Port, Direct Mount
Stock #
552903C
Series
5529
List Price: $162.23
Price: $129.78
- Buy 3 for $116.81 each
Usually Ships: Same Day
Valworx 552903C stainless steel full port three way ball valves are designed for use with water, air, oil, and other media compatible with the materials of construction. Valves can be set-up in any one of four different flow patterns (T1-T4) in the field by simply moving the valve stem and handle (factory setup T2 flow pattern). These valves require low operating torque and feature a quarter turn latch-locking handle. Removing handle allows for easy mounting of electric or pneumatic actuators with the industry standard ISO5211 direct mounting pad. This insures precision shaft alignment and eliminates the need for additional brackets and couplings. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations. All valves are tested per API 598.
Full Port for Unrestricted Flow 316 Stainless Steel Body, Ball and Stem Four Seats Design allows for Full Pressure at Any Port RTFE ball seats Extend Cycle Life and Reduce Torque Triple PTFE/Viton Stem Seal Design, Live Loaded Latch Locking Handle (padlockable) Actuator Ready ISO5211 Direct Mounting Pad
| Type | Manual 3 Way T-Port Valve |
|---|---|
| Pipe Size (in)-Specs | 3/8" NPT female |
| Full Port Orifice Size (inches) | 0.43 |
| Cv | 7.3 |
| Pressure Rating | 1000 PSI (see P/T chart ), 125 PSI saturated steam, vacuum up to 29.92 InHg (2.3 x 10-3 Torr) |
| Temperature Range | -4 to 392°F (-20 to 200°C) |
| Stem | 316 Stainless Steel |
| Ball Seat Material | RTFE (reinforced Teflon) |
| Stem Seal Material | PTFE/ Viton (live loaded and adjustable) |
| ISO 5211 Mount | F03/F04, 9mm |
| Handle | 304 Stainless Steel with vinyl grip |
| Max Fluid Velocity | 10 feet per second |
