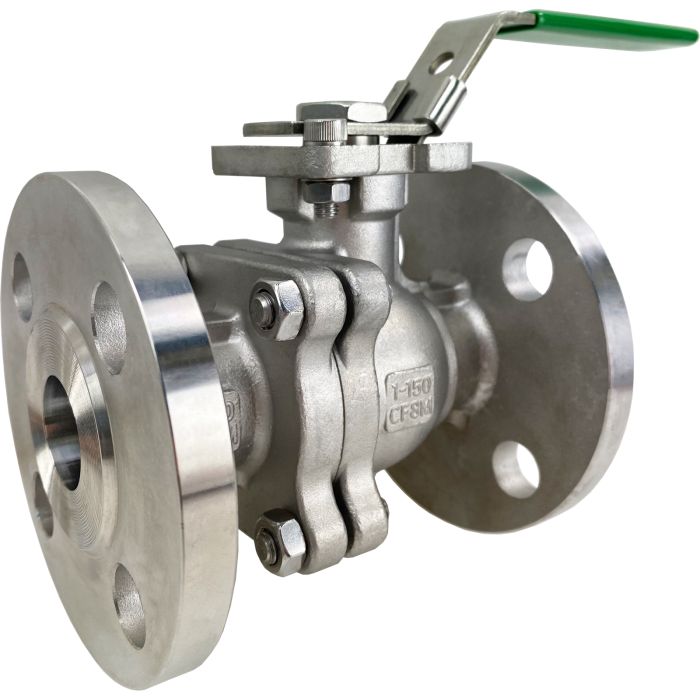

1" Stainless ANSI 150# Flanged Ball Valve - ISO Direct Mount

SKU

553008A

Series

5530

List Price: $377.31

Price: $301.85

Buy 3 for $271.66 each and save 10%

Description

Valworx 553008A low emission stainless steel 2-piece full port ANSI 150# flanged ball valves are designed for oil and gas as well as general chemical and industrial applications. Dual-certified low-emission (API 641) and fire-safe (API 607). These investment cast valves offer low operating torque with quarter turn latch-locking handle. Removing handle allows for easy mounting of electric or pneumatic actuators with the industry standard ISO5211 direct mounting pad. This insures precision shaft alignment and eliminates the need for additional brackets and couplings. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations. All valves are tested per API 598.

Not suitable for potable water or high purity applications.

Full Port for Unrestricted Flow

316 Stainless Steel Body, Ball and Stem

Blow Out Proof Stem

RTFE Ball Seats Extend Cycle Life and Reduce Torque

Braided Graphite Stem Seals, Live Loaded

Latch Locking Handle (Padlockable)

Actuator Ready ISO5211 Direct Mounting Pad

Anti-Static Design

Fire Safe Design (API 607)

Pipeline Design (API 608)

Low Emission Stem Packing (API 622)

Low Emission Design (API 641)

Specifications

More Information
Ball Seats	RTFE (reinforced Teflon)
Body/Ball	316 stainless steel (ASTM A351 CF8M)
Face to Face	ANSI B16.10 class 150
Fire Safe	API 607
Flange Dimension	ANSI B16.5 Class 150
Handle	304 stainless steel with vinyl grip
ISO 5211 Mount	F03/F05, 9mm square stem
Low Emission	API 641
Max Fluid Velocity	10 feet per second
Pipe Size	1" ANSI Class 150# Flanged
Pipeline Use	API 608
Port Size	Full port, 1.00 inch orifice,Cv 60
Pressure (Max)	275 PSI CWP (see P/T chart ), Vacuum 29inHg, Steam 125 PSI
Stem Seals	Braided Graphite/ Viton (live loaded and adjustable)
Stem	316 Stainless Steel
Stem Packing	API 622
Temperature Range	-4 to 392 °F (-20 to 200 °C)
Type	Manual Flange Valve
