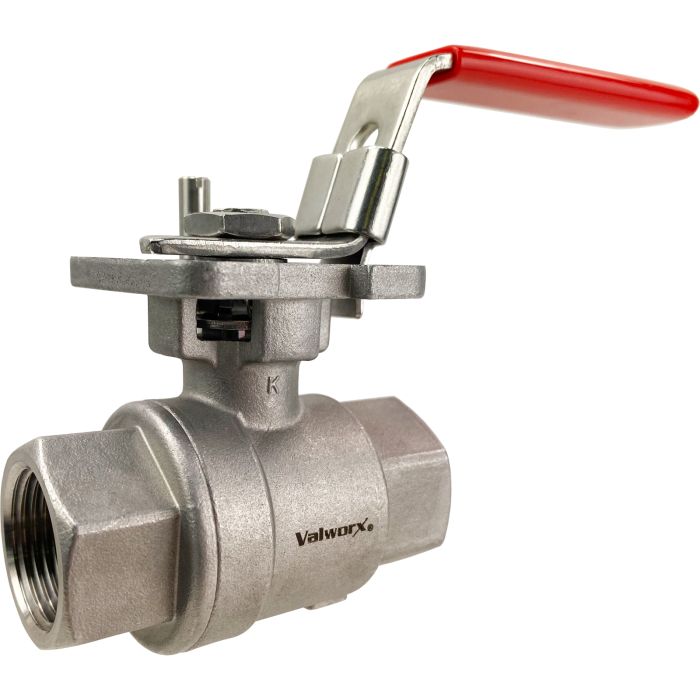

3/4" Stainless Ball Valve - Direct Mount
SKU
551806A
Series
5518
List Price: $112.13
Price:
$89.70
- Buy 3 for $80.73 each and save 10%
Valworx 551806A stainless steel 2-piece ball valves are designed for use with water, air, oil, and other media compatible with the materials of construction. Low operating torque with quarter turn latch-locking handle. Removing handle allows for easy mounting of electric or pneumatic actuators with the industry standard ISO5211 direct mounting pad. This insures precision shaft alignment and eliminates the need for additional brackets and couplings. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations. All valves are tested per API 598.
Full Port for Unrestricted Flow 316 Stainless Steel Body, Ball and Stem Blow Out Proof Stem RTFE ball seats extend cycle life and Reduce Torque Triple PTFE/Viton Stem Seal Design, live loaded and adjustable Latch Locking Handle (Padlockable) Actuator Ready ISO5211 Direct Mounting Pad
| Ball Seats | RTFE (reinforced Teflon) |
|---|---|
| Body/Ball | 316 stainless steel (ASTM A351 CF8M) |
| Handle | 304 stainless steel with vinyl grip |
| ISO 5211 Mount | F03/F05, 9mm square stem |
| Max Fluid Velocity | 10 feet per second |
| Pipe Size | 3/4" NPT female |
| Port Size | Full port, 0.79 inch orifice,Cv 18.4 |
| Pressure (Max) | 1000 PSI CWP (see P/T chart ), Vacuum 29inHg, Steam 125 PSI |
| Stem Seals | PTFE/ Viton (live loaded and adjustable) |
| Stem | 316 Stainless Steel |
| Temperature Range | -4 to 392 °F (-20 to 200 °C) |
| Type | Manual 2 Way Ball Valve |
