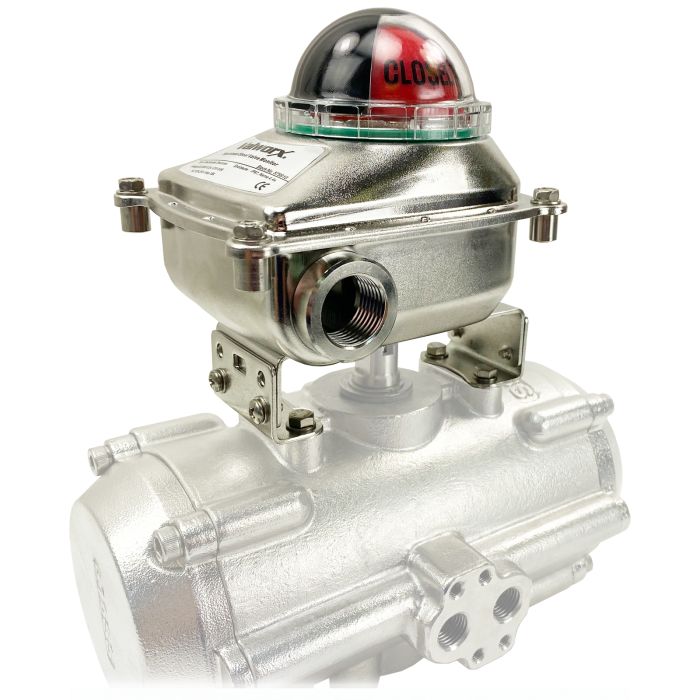

Stainless Steel Actuated Valve Limit Switch IP67/NEMA 4X

Stock #

579910

Series

5799

List Price: $333.90

Price: $267.12

Buy 3 for $240.41 each

Usually Ships: Same Day

Description

Weatherproof, corrosion resistant valve monitor provides both electrical and visual indication of the valve position when used with quarter turn air actuated valves. Limit switch box has two SPDT switches and a highly visual dome style indicator used to confirm the "Open" or "Closed" valve position. Low profile design includes a universal stainless steel housing, mounting bracket and hardware. Switch box easily mounts to standard Namur type actuators. INSTALLATION INCLUDED when ordered with a Valworx air actuated valve.

Specifications

More Information
Disc Seat/Liner	EPDM
Enclosure	316 Stainless Steel
Enclosure Protection	IP67, NEMA 4, 4X, 7, 8 weatherproof
Electrical Connections	Two 1/2" NPT female conduit, terminal strip (8 contacts)
Valve Position Indicator	Dome Indicator (red-closed position, yellow-open position)
Approvals	CSA US and C, CE (UL rated switches)
Fasteners	Stainless steel
Limit Switches	2 SPDT Honeywell mechanical switches - UL rated
Mounting Bracket	Namur fits 30x80 or 30x130, 20 to 30mm height
Output Shaft	Stainless Steel
Switch Rating	AC 125V 5Amps, 250V 3A, DC 250V 0.2A, 30V 4A
