3/8" V-Port Ball Valve - 30?

Valworx 553103 stainless steel V-port ball valves are designed for applications requiring precise flow control. Suitable for use with water, air, oil, and other media compatible with the materials of construction. Unique three piece investment cast bolted body design offers the advantage of a swing out body for easy inline maintenance.

V-port valves are intended for use with Valworx 5610 Multi-Voltage DPS Positioner, Valworx 5618 EPS Positioner or 5818 Explosion Proof Positioner positioning actuators. When purchased as an actuated assembly, select the V-port option from the Accessories tab.

Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations. All valves are tested per API 598.

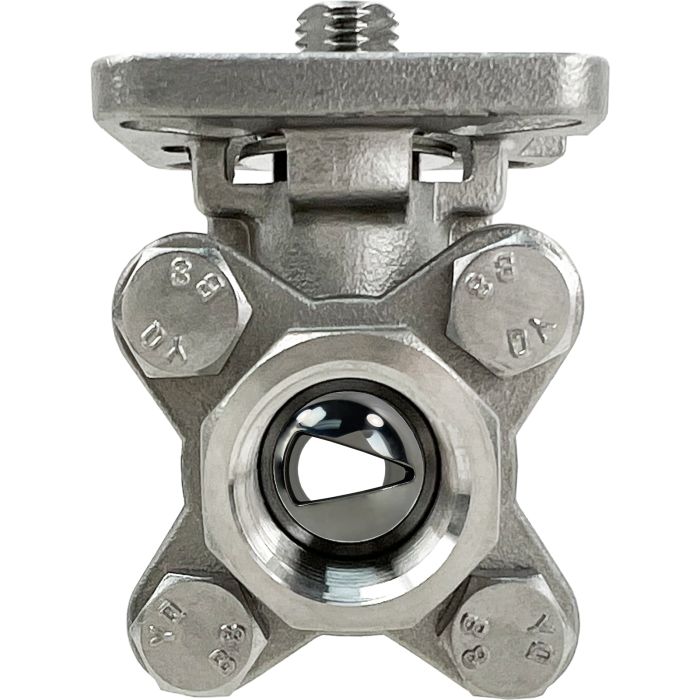

30° V-port machined 316 stainless steel ball

Same pressure rating as Valworx full port valves

316 Stainless Steel Body and Stem

Blow Out Proof Stem

RTFE Ball Seats Extend Cycle Life and Reduce Torque

Triple PTFE/Viton Stem Seal Design, Live Loaded

For use with Valworx EPS positioning actuators

Actuator Ready ISO5211 direct mounting pad

Includes 304 stainless steel locking handle
