Actuated Valve Limit Switch IP67/NEMA 4X
SKU
529910A
Series
5299
List Price: $195.30
Price:
$156.24
- Buy 3 for $140.62 each and save 10%

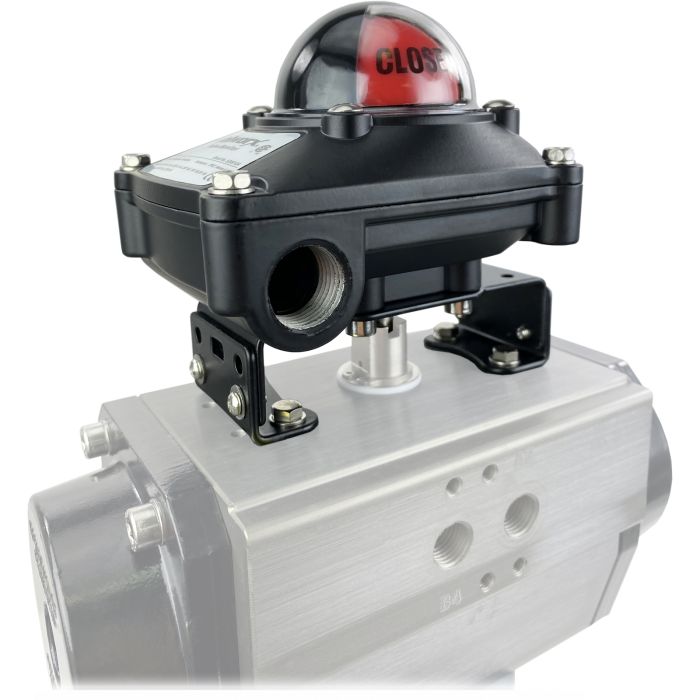

Weatherproof compact valve monitor provides both electrical and visual indication of the valve position when used with quarter turn air actuated valves. Limit switch box has two SPDT switches and a highly visual dome style indicator used to confirm the "Open" or "Closed" valve position. Low profile design includes a universal Namur polyester powder coated steel mounting bracket and stainless hardware. Switch box easily mounts to standard Namur type actuators. INSTALLATION INCLUDED when ordered with a Valworx air actuated valve.
| Approvals | CSA US and C, CE (UL rated switches) |
|---|---|
| Electrical Connection | (2) 1/2" NPT female conduit, terminal strip (8 contacts) |
| Enclosure | Aluminum die-cast housing, polyester powder coated |
| Enclosure Rating | IP67, NEMA 4, 4X weatherproof |
| Fasteners | Stainless steel |
| Limit Switches | 2 SPDT Honeywell mechanical switches - UL rated |
| Mounting Bracket | Namur fits 30x80 or 30x130, 20 to 30mm height |
| Output Shaft | Stainless steel, Namur |
| Switch Rating | AC 125V 5Amps, 250V 3A, DC 250V 0.2A, 30V 4A |
| Visual Indicator | Dome style multiview (red-closed position, yellow-open position) |
-
