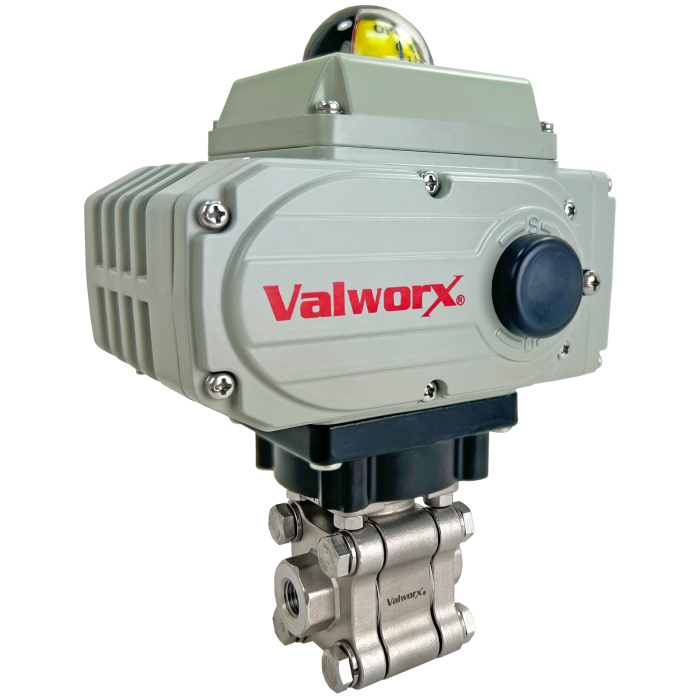

Electric Actuated 3 pc SS Ball Valve 1/4", 24 VDC, High Pressure

Valworx 542144 electric actuated high pressure stainless steel ball valves are used for on-off control of water, air, oil, and other media compatible with the materials of construction. Fire safe approved per API 607. Unique three piece investment cast bolted body design offers the advantage of a swing out body for easy inline maintenance. Standard unit is power-to-open and power to close, stays in last known position with loss of power. On receipt of a continuous voltage signal, the motor runs and a self-locking all metal gear drive rotates the ball. The motor is stopped by internal cams striking limit switches. On receipt of a reversing continuous signal, the motor turns in the opposite direction reversing the valve position.

The valve is direct mounted to the actuator using the international standard ISO5211 mounting pad. Rugged unique integral motor/housing design provides higher torque in a very small package. Actuators are tested to rigorous UL and CSA standards and certified by CSA. Anti-condensation heater is standard and will help protect actuator against damage caused by condensation.

High temperature valve mounting kit available for extended temperature range or wall mounting applications.

Not suitable for potable water, oxygen or high purty applications.

Ball Valve Standard Features

2000 PSI working pressure ( CWP-see P/T chart)

Fire safe approved per API 607

Braided graphite stem seals

3-piece swing out design for easy maintenance

Direct mounting valve per ISO5211

Full port for unrestricted flow

316 stainless steel body, ball and stem

Blow out proof stem

RTFE ball seats extend cycle life

Electric Actuator Standard Features

Quarter turn operation with mechanical limits

Rugged Type 4X weatherproof aluminum alloy housing

Visual valve position indicator

Manual override

Heavy duty motor with overload protection

Thermostatically controlled anti-condensation heater

Two auxiliary limit switches to confirm valve position

Self-locking all metal gear drive, no additional brake required

CSA Listed per UL429 and CSA C22.2, CE mark

Options (see Accessories tab)
