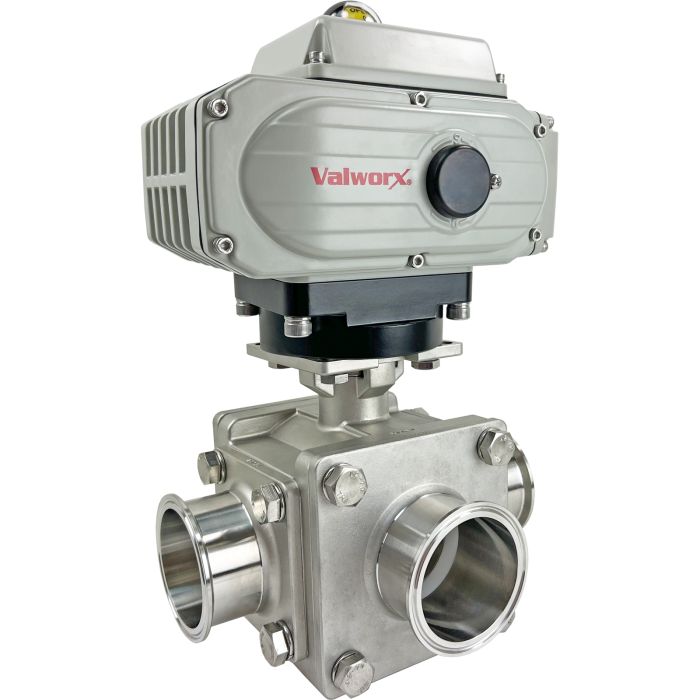

3" Sanitary Ball Valve, L-Port, 24VDC, Tri-Clamp
Stock #
573706C
Series
5737
List Price: $4,976.09
Price: $3,980.87
- Buy 3 for $3,582.78 each
Usually Ships: Same Day
Valworx 573706C electric actuated stainless steel sanitary 3-way ball valves are typically used for food, beverage, pharmaceutical, personal care and pet care applications where sanitary construction is required, as well as for utility, process and corrosive environment applications where quick clamp applications are needed. These L port valves can be used as either a diverter valve or a selector valve. When using as a diverter valve, inlet flow to the center inlet port is diverted to either side outlet port one or side outlet port two. When using as a selector valve, there are two separate inlet ports (side ports) and one common outlet port (center port). Highly polished internals (8- 12 Ra finish) and Dyneon PTFE ball seats are standard. Triple stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations.
Ball Valve Standard FeaturesFull Port for Unrestricted Flow 8- 12 Ra finish on all internal surfaces Dyneon PTFE ball seats and cavity fillers All materials comply with FDA and requirements Triple PTFE/Viton Stem Seal Design, Live Loaded Standard Tri-Clamp ends for sanitary connections Actuator Ready ISO5211 Direct Mounting Pad All valves are tested per API 598
Electric Actuator Standard FeaturesQuarter turn operation with mechanical limits Rugged Type 4X weatherproof aluminum alloy housing Visual valve position indicator Manual override Heavy duty motor with overload protection Thermostatically controlled anti-condensation heater Two auxiliary limit switches to confirm valve position Self-locking all metal gear drive, no additional brake required CSA Listed per UL429 and CSA C22.2, CE mark
Options (see Accessories tab)
Ball Valve Standard Features
Electric Actuator Standard Features
Options (see Accessories tab)
| Type | Electric Actuated Sanitary 3 Way Ball Valve- On/Off |
|---|---|
| Actuator Voltage | 24 VDC |
| Current Rating | 3.57A (full load amps) |
| Cycle Time | 30 seconds per 90° rotation |
| Duty Cycle | 70% |
| Pipe Size ~ Tri-Clamp (inches) | 3" ~ 3" |
| Full Port Orifice Size (inches) | 2.90 |
| Cv | 210.2 |
| Pressure Rating | 600 PSI |
| Valve Temperature Range | -4 to 356°F (-20 to 180°C) |
| Actuator Temperature Range | -13 to 131°F (-25 to 55°C) |
| Valve Body/Ball | 316 SS |
| Body/Ball Material | 316 Stainless Steel |
| Stem | 316 Stainless Steel |
| Internal Finish | 8- 12 Ra |
| Cavity Filler | Dyneon PTFE, encapsulated |
| Ball Seat Material | Dyneon PTFE |
| Stem Seal Material | PTFE/ Viton (live loaded and adjustable) |
| Enclosure | Aluminum alloy, polyester painted, SS fasteners |
| Enclosure Protection | IP67, NEMA 4, 4X weatherproof |
| Electrical Connections | Terminal strip, 1/2" NPT conduit (optional) / cable connector (included) |
| Valve Position Confirmation | 2 x SPST auxiliary limit switches rated 3A@125/250VAC, 30VDC resistive load |
| Valve Position Indicator | Dome Indicator |
| Manual Override | 5mm hex drive with protective cover |
| Motor Protection | Thermal overload |
| Anti-Condensation Heater | 4 watts thermostatically controlled |
| Bolts/Nuts | 304 Stainless Steel |
| Max Fluid Velocity | 10 feet per second |
