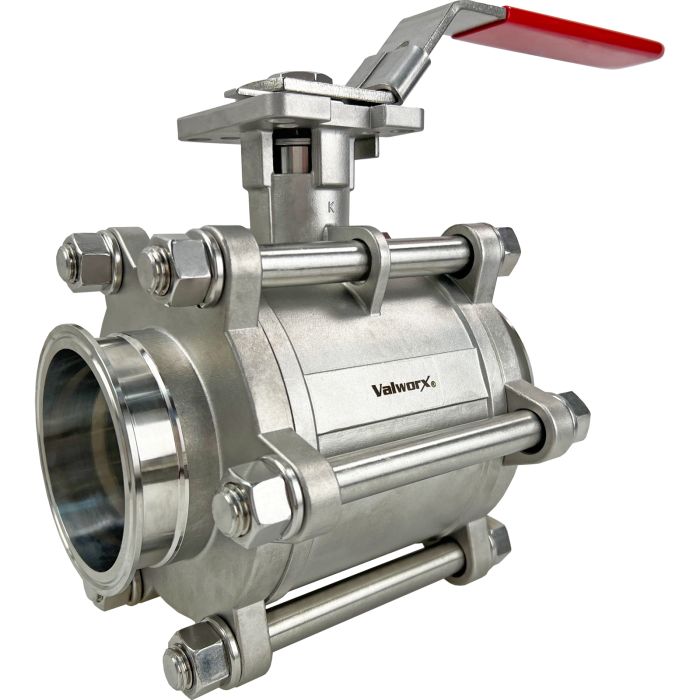

4" Sanitary Ball Valve, Direct Mount, Tri-Clamp

SKU

570107A

Series

5701

List Price: $1,664.00

Price: $1,331.20

Buy 3 for $1,198.08 each and save 10%

Description

Valworx 570107A stainless steel sanitary ball valves are typically used for food, beverage, pharmaceutical, personal care and pet care applications where sanitary construction is required, as well as for utility, process and corrosive environment applications where quick clamp applications are needed. Highly polished internals (8- 12 Ra finish). Dyneon PTFE ball seats and cavity fillers are standard. Easy mounting of electric or pneumatic actuators with the industry standard ISO5211 direct mounting pad. Triple PTFE/Viton stem seal design is live-loaded and self-adjusting, compensating for wear, pressure, and temperature fluctuations.

Full Port for Unrestricted Flow

8- 12 Ra finish on all internal surfaces

Dyneon PTFE ball seats and cavity fillers

All materials comply with FDA and USDA requirements

Triple PTFE/Viton Stem Seal Design, Live Loaded

Standard Tri-Clamp ends for sanitary connections

Actuator Ready ISO5211 Direct Mounting Pad

All valves are tested per API 598

Suitable for vacuum up to 29inHg

Specifications

More Information
Ball Seats	Dyneon PTFE
Body/Ball	ASTM 316 stainless steel
Bolts/Nuts	ASTM 304 stainless steel
Cavity Filler	Dyneon PTFE, encapsulated
Internal Finish	8- 12 Ra
ISO 5211 Mount	F07/F10, 17mm square stem
Max Fluid Velocity	10 feet per second
Pipe Size ~ Tri-Clamp	3" ~ 3"
Port Size	Full port, 2.9 inch orifice, Cv 780.0
Pressure (Max)	800 PSI WOG
Stem Seals	PTFE/ Viton, live loaded
Stem	ASTM 316 stainless steel
Temperature Range	-4 to 356°F (-20 to 180°C)
Type	Manual Sanitary Ball Valve
